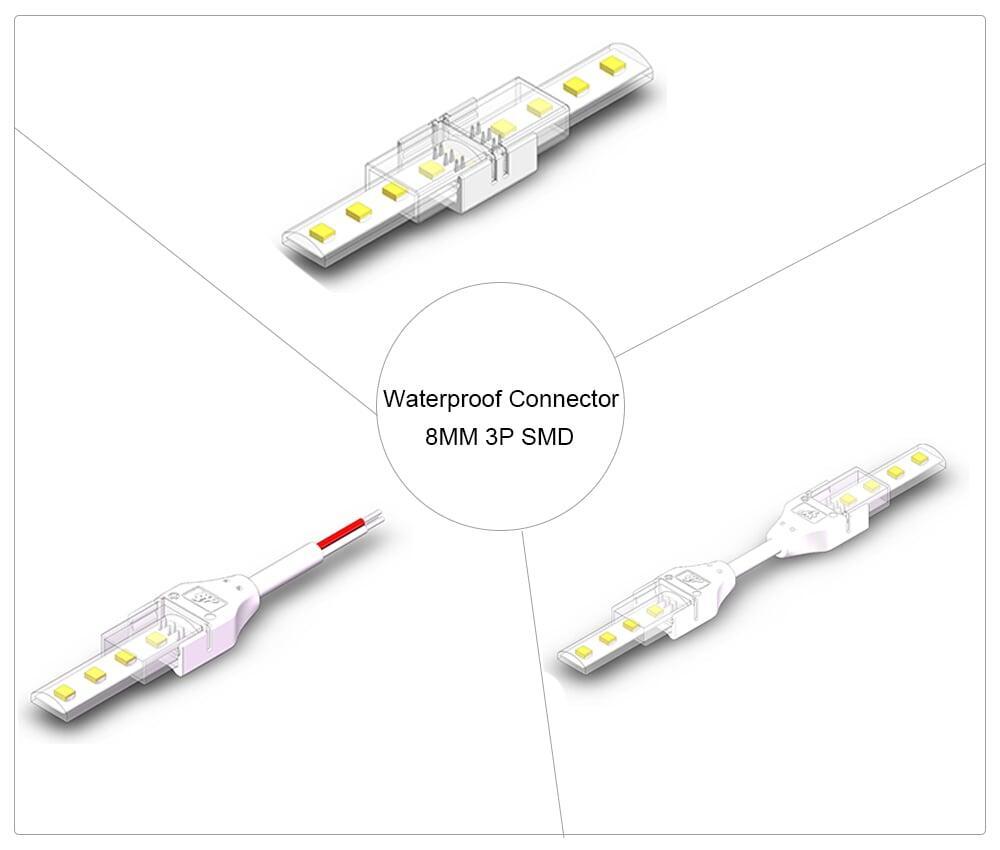

Waterproof-8mm PCB(10MM Tube) 3P SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, L shape, End Cap
- Applicable Strip: Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Pictures | Types | Aplication |

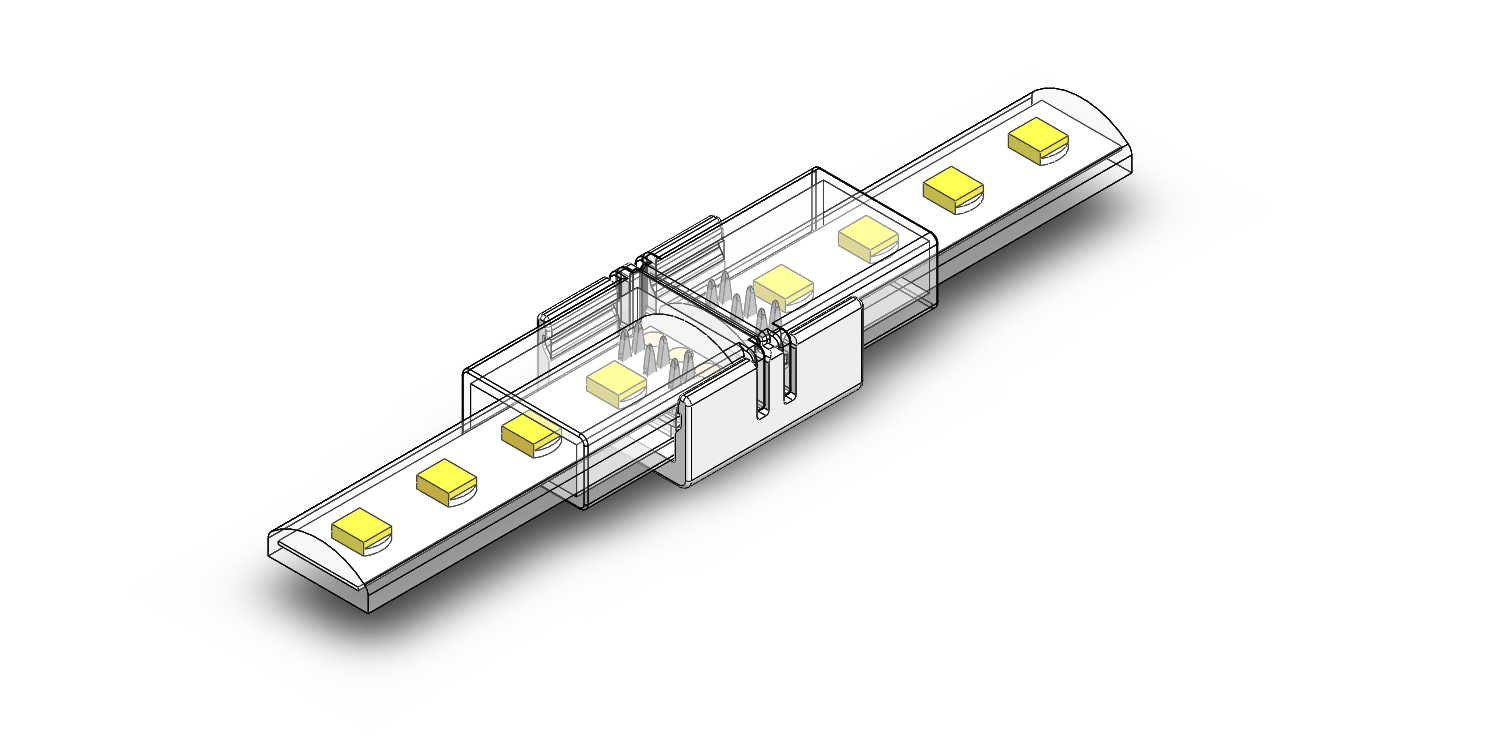

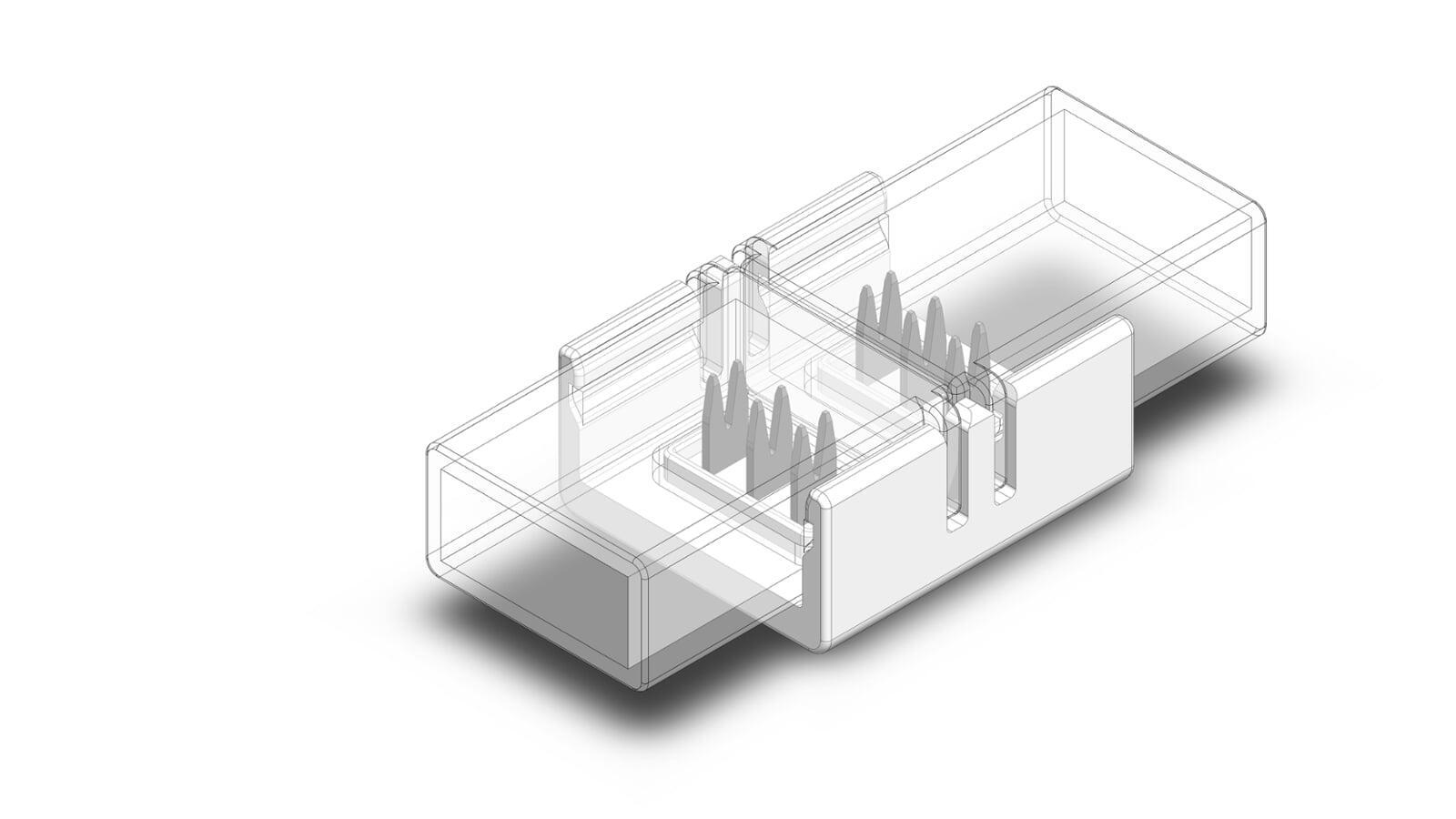

| 75# Squared | HR-IP-SMD-3PIN-8MM-A |   | Strip to strip Joint; | Used for 8mm PCB (10mm tube) 3P Smd waterproof strip light |

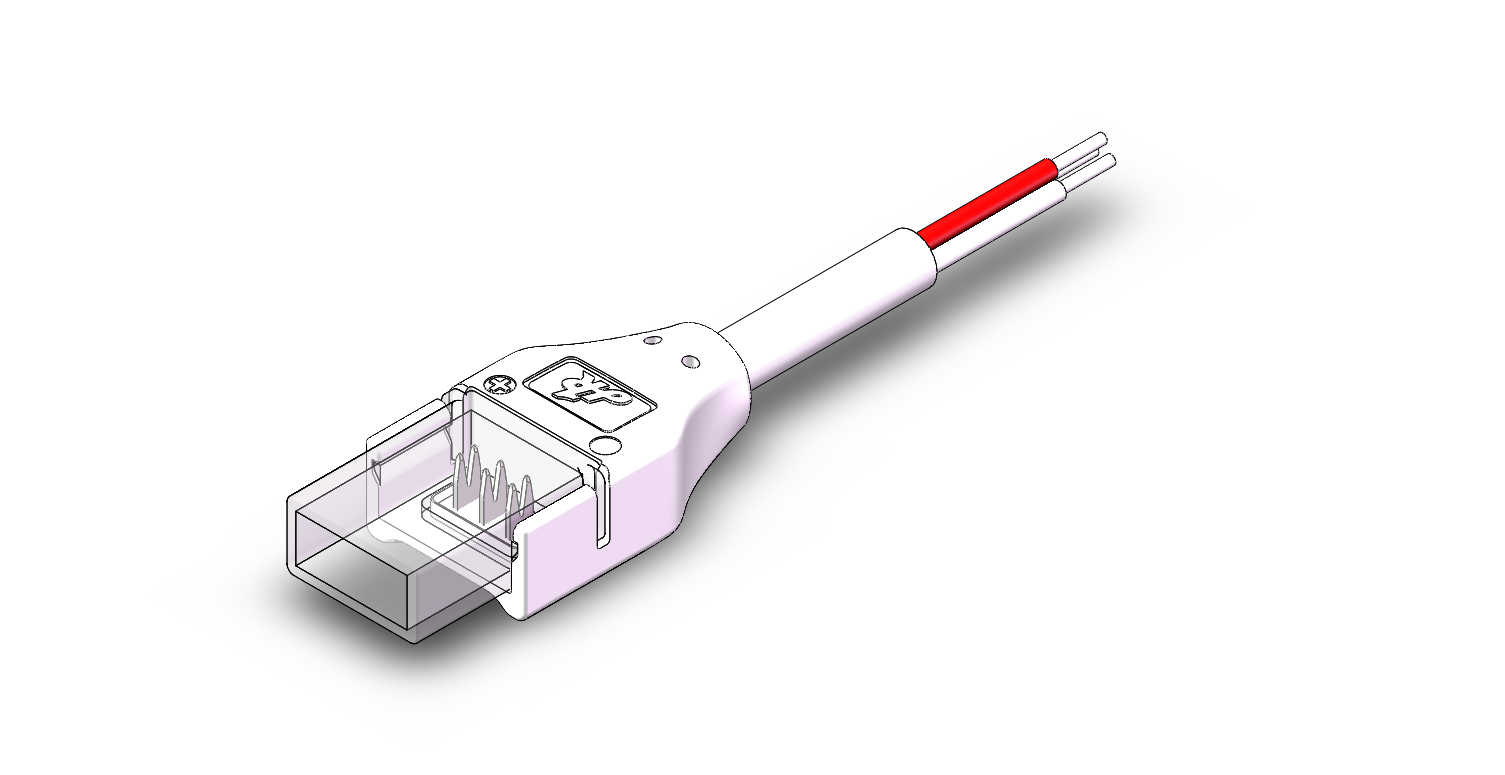

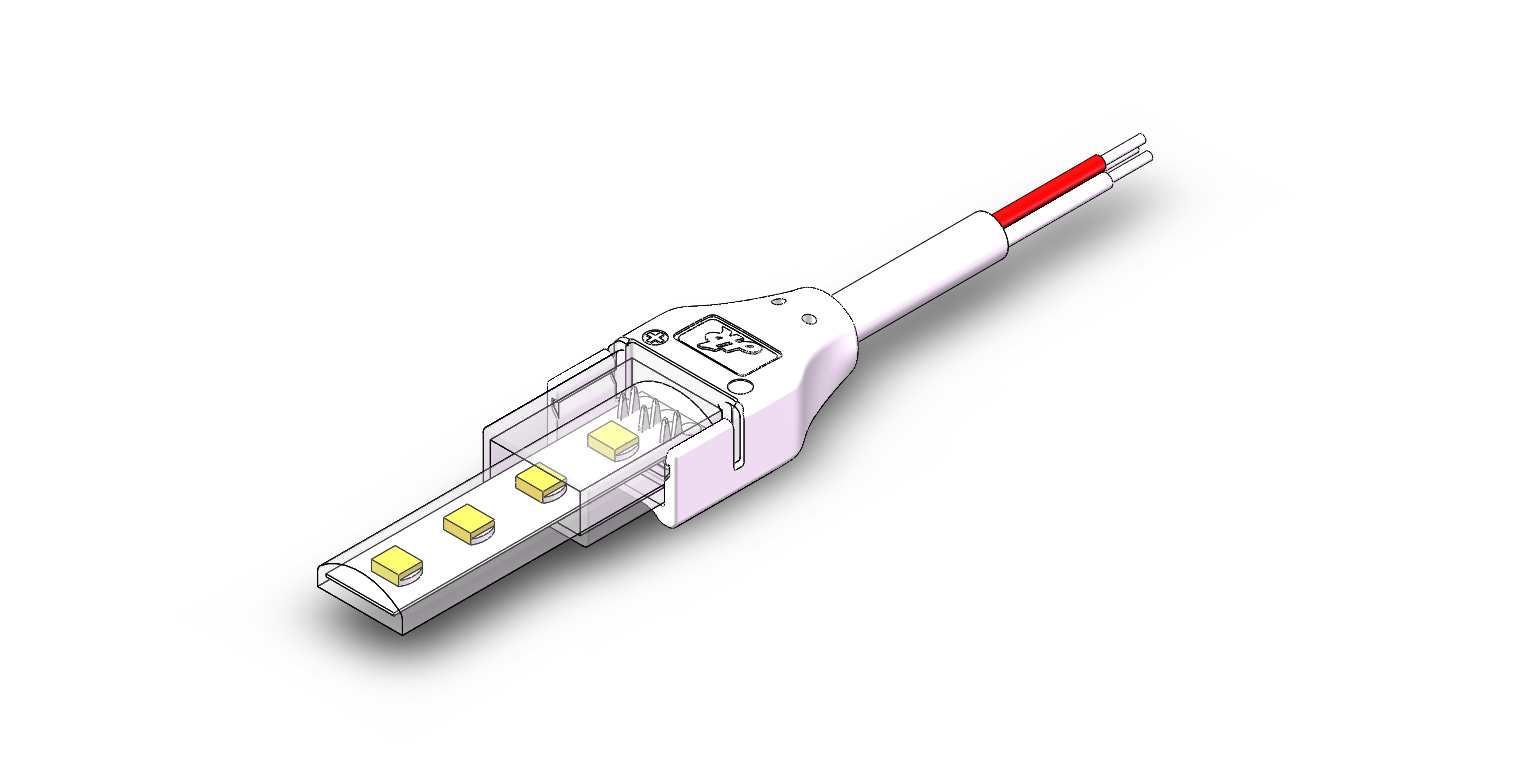

| 74# Squared | HR-IP-SMD-3PIN-8MM-B |   | Strip to wire, with 20AWG wire. | Used for 8mm PCB (10mm tube) 2P waterproof strip light |
| 76# Squared | HR-IP-SMD-3PIN-8MM-C |   | Strip to Strip Bridge | Used for 8mm PCB (10mm tube) 2P waterproof strip light |
Data Sheet
Used for Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 75# HR-IP-SMD-3PIN-8MM-A | Strip to Strip Joint | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 35.5x15.3x8.5mm | Nylon, PC | / | White&Transparent |
| 74# HR-IP-SMD-3PIN-8MM-B | Strip to Wire | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 34.5x15.3x8.5mm | Nylon, PC | 180MM Length 20AWG/0.52mm² | White&Transparent |
| 76# HR-IP-SMD-3PIN-8MM-C | Strip to Strip Bridge | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 34.5x15.3x8.5mm | Nylon, PC | 170MM Length 20AWG/0.52mm² | White&Transparent |
Recommend Dimension
Installation
