Waterproof-8mm PCB(10MM Tube) 2P COB/SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, L shape, End Cap
- Applicable Strip: Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

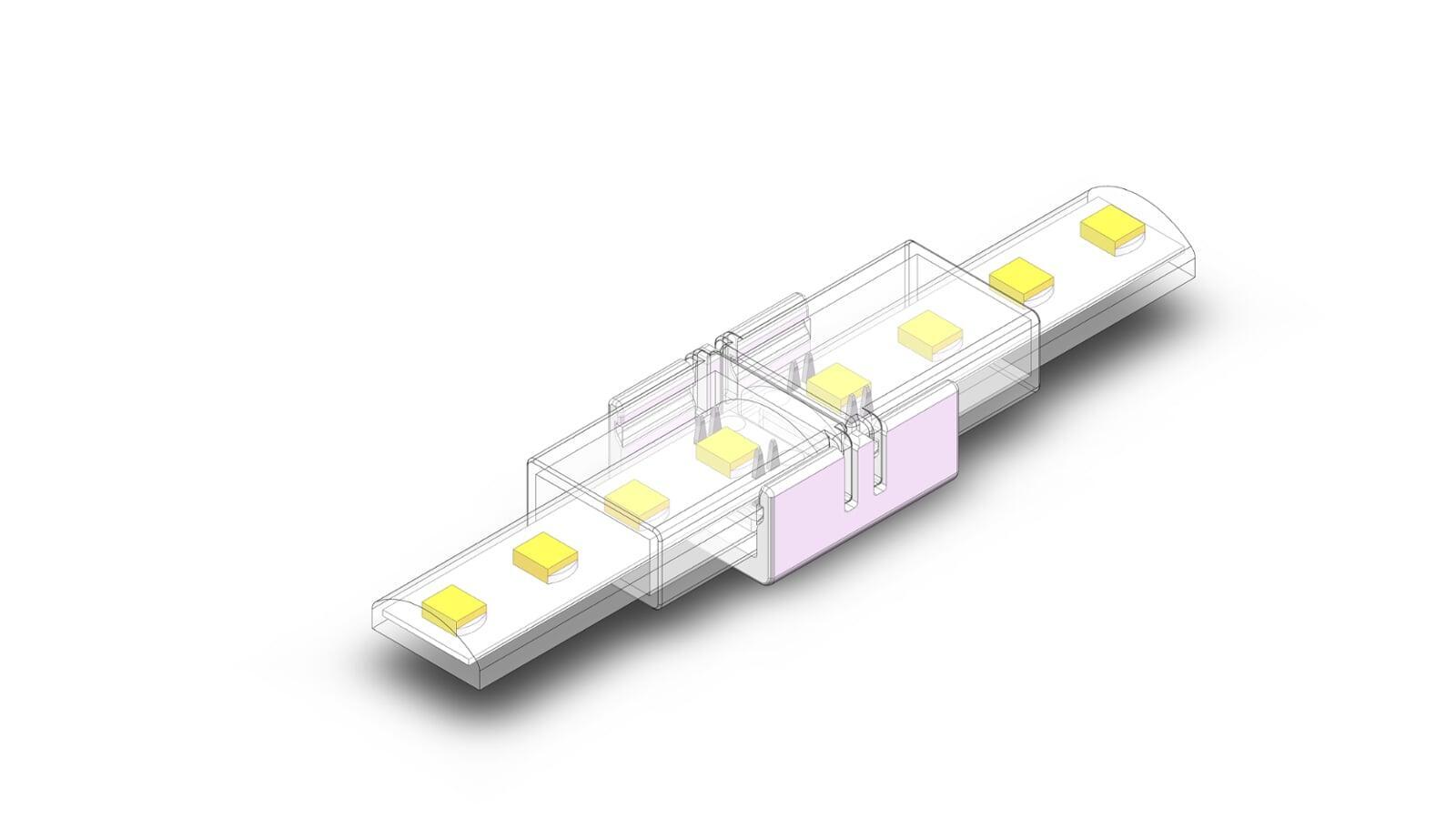

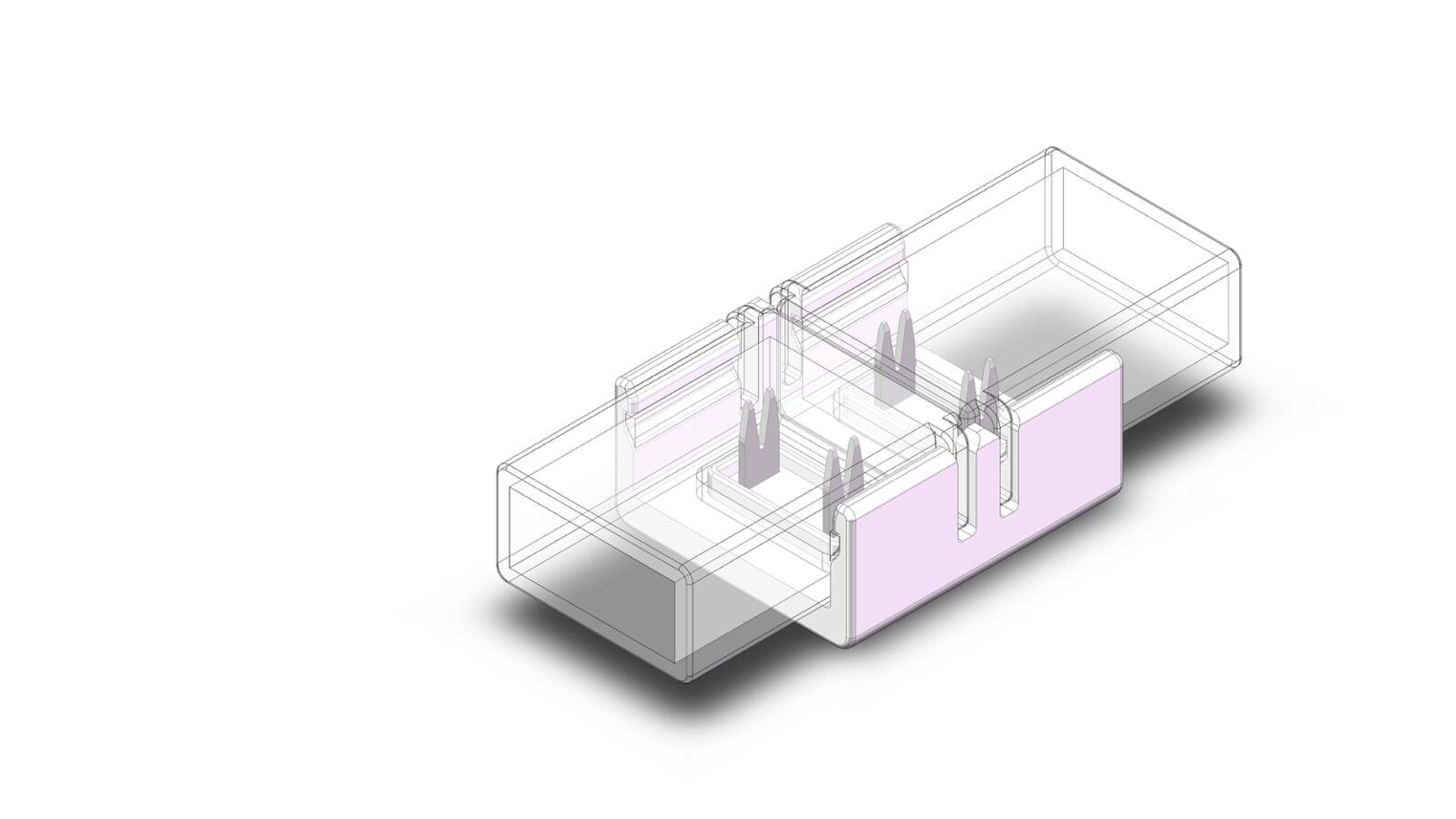

| 72# Squared | HR-IP-SC-2PIN-8MM-A |    | Strip to strip Joint; | Used for 8mm PCB (10mm tube) 2P waterproof strip light |

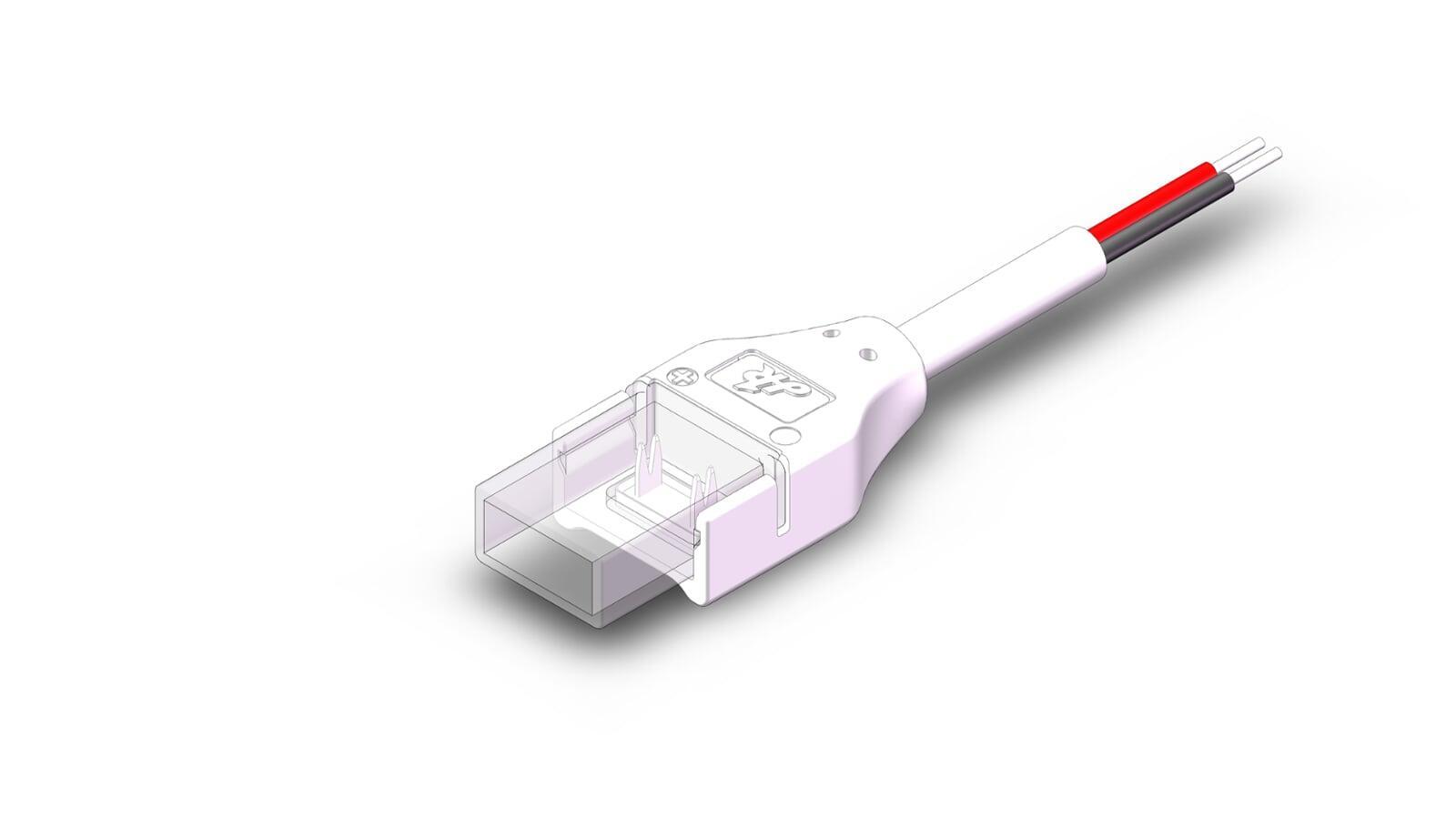

| 71# Squared | HR-IP-SC-2PIN-8MM-B |    | Strip to wire, with 20AWG wire. | Used for 8mm PCB (10mm tube) 2P waterproof strip light |

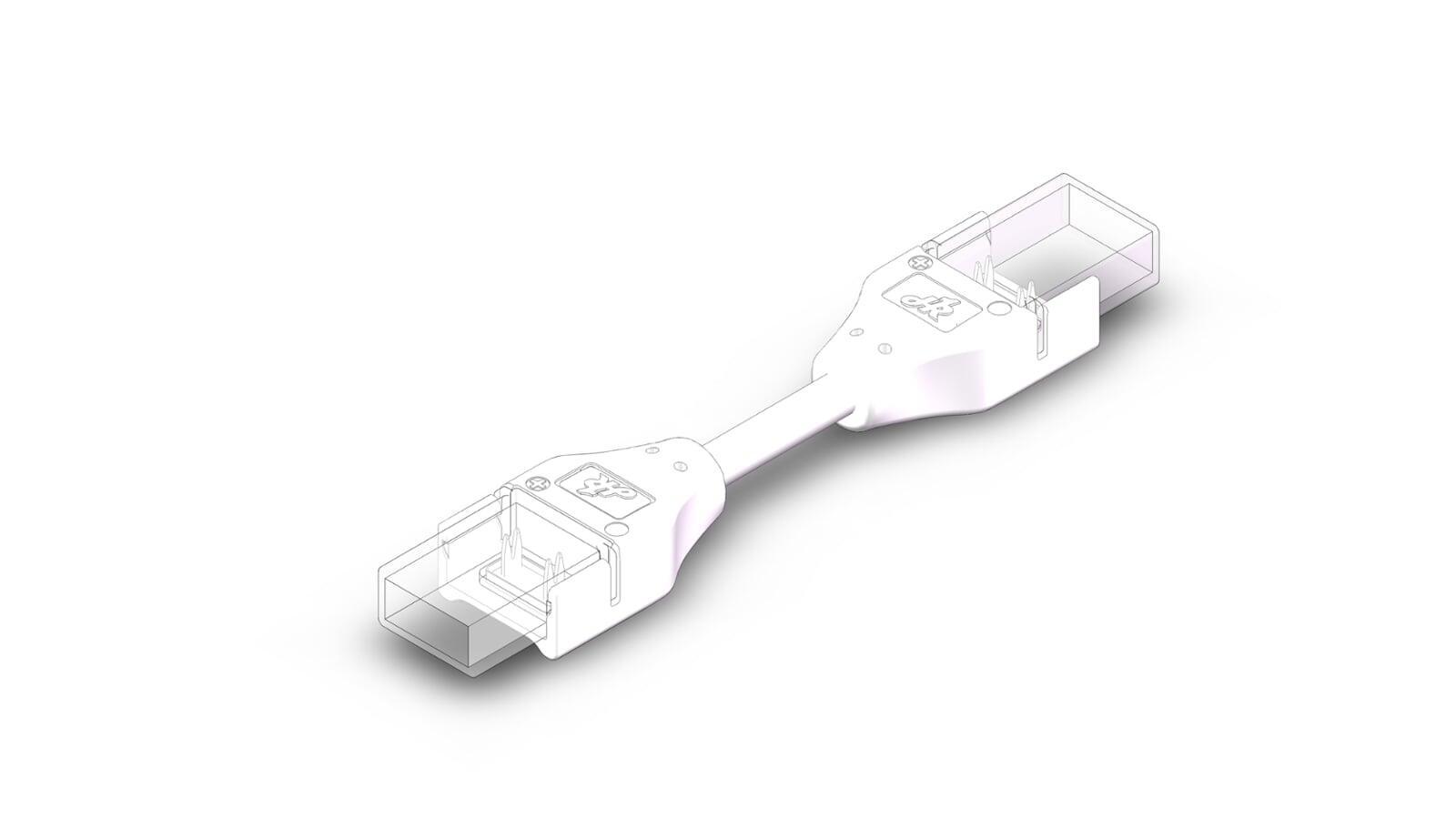

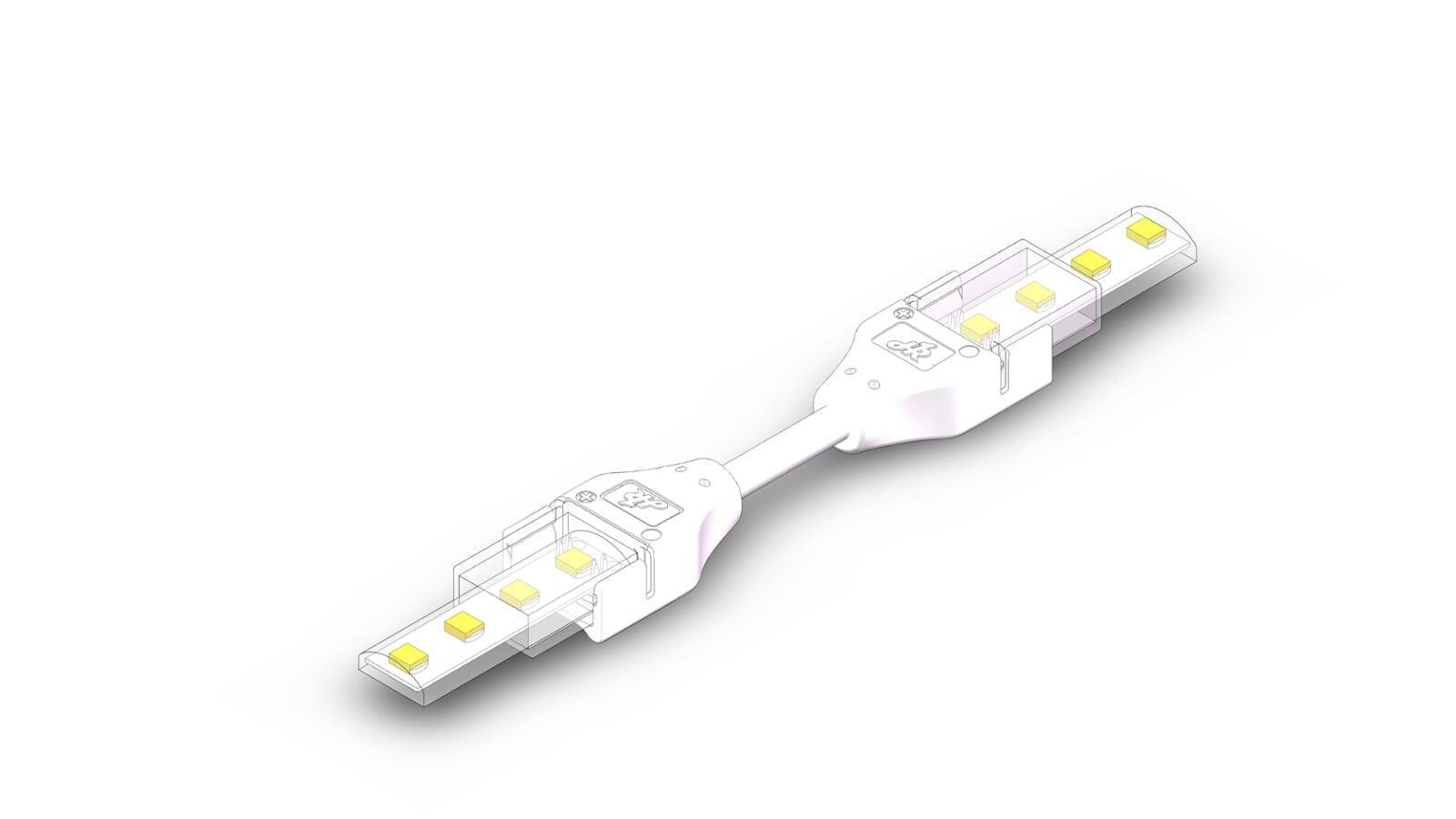

| 73# Squared | HR-IP-SC-2PIN-8MM-C |    | Strip to Strip Bridge | Used for 8mm PCB (10mm tube) 2P waterproof strip light |

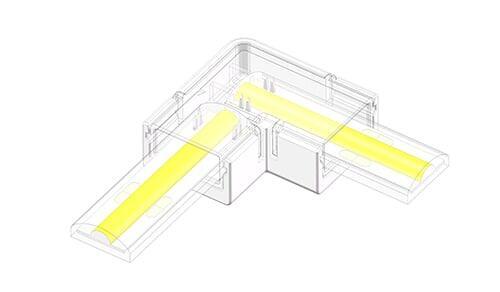

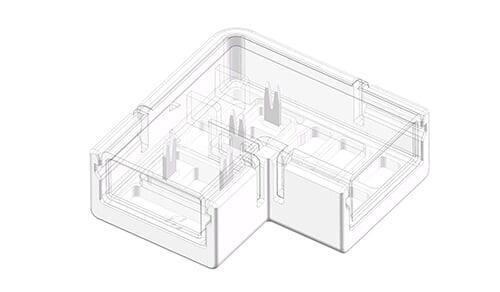

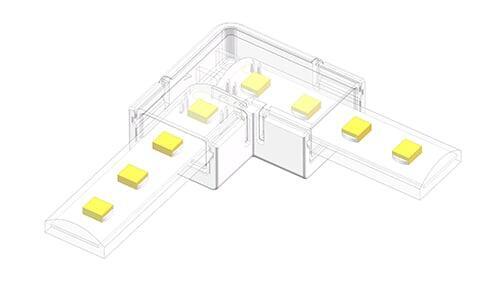

| 145# Squared | HR-IP-SC-2PIN-8MM-L |    | Strip to Strip L shape | Used for 8mm PCB (10mm tube) 2P waterproof strip light |

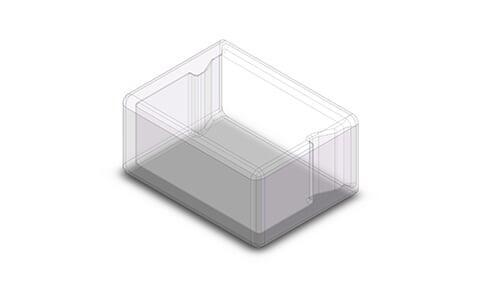

| 143# Squared | EC-8MM-1 |   | End Cap | Used for 8mm PCB (10mm tube) 2P waterproof strip light |
| 72# Curved | HR-IP-SC-2PIN-8MM-A | Strip to strip Joint; | Used for 8mm PCB (10mm tube) 2P waterproof strip light | |
| 71# Curved | HR-IP-SC-2PIN-8MM-B | Strip to wire, with 20AWG wire. | Used for 8mm PCB (10mm tube) 2P waterproof strip light | |
| 73# Curved | HR-IP-SC-2PIN-8MM-C | Strip to Strip Bridge | Used for 8mm PCB (10mm tube) 2P waterproof strip light |
Data Sheet
Used for Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 72# HR-IP-SC-2PIN-8MM-A | Strip to Strip Joint | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 35.5x15.3x8.5mm | Nylon, PC | / | White&Transparent |
| 71# HR-IP-SC-2PIN-8MM-B | Strip to Wire | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 34.5x15.3x8.5mm | Nylon, PC | 180MM Length 20AWG/0.52mm² | White&Transparent |
| 73# HR-IP-SC-2PIN-8MM-C | Strip to Strip Bridge | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 34.5x15.3x8.5mm | Nylon, PC | 170MM Length 20AWG/0.52mm² | White&Transparent |
| 145# HR-IP-SC-2PIN-8MM-L | Strip to Strip L shape | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | 3-240V/6A | 23.8x15.1x9mm | Nylon, PC | / | White&Transparent |
| 143# EC-8MM-1 | End Cap | 8mm PCB; Squared encapsulated extruded deimension 10x4mm | / | 11.7x8.5x5.7mm | PC | / | Transparent |
| 72# Curved HR-IP-SC-2PIN-8MM-A | Strip to Strip Joint | 8mm PCB; Curved encapsulated extruded deimension 10x6mm | 3-240V/6A | 35.5x15.3x10.5mm | Nylon, PC | / | White&Transparent |
| 71# Curved HR-IP-SC-2PIN-8MM-B | Strip to Wire | 8mm PCB; Curved encapsulated extruded deimension 10x6mm | 3-240V/6A | 34.5x15.3x10.5mm | Nylon, PC | 180MM Length 20AWG/0.52mm² | White&Transparent |
| 73# Curved HR-IP-SC-2PIN-8MM-C | Strip to Strip Bridge | 8mm PCB; Curved encapsulated extruded deimension 10x6mm | 3-240V/6A | 34.5x15.3x10.5mm | Nylon, PC | 170MM Length 20AWG/0.52mm² | White&Transparent |

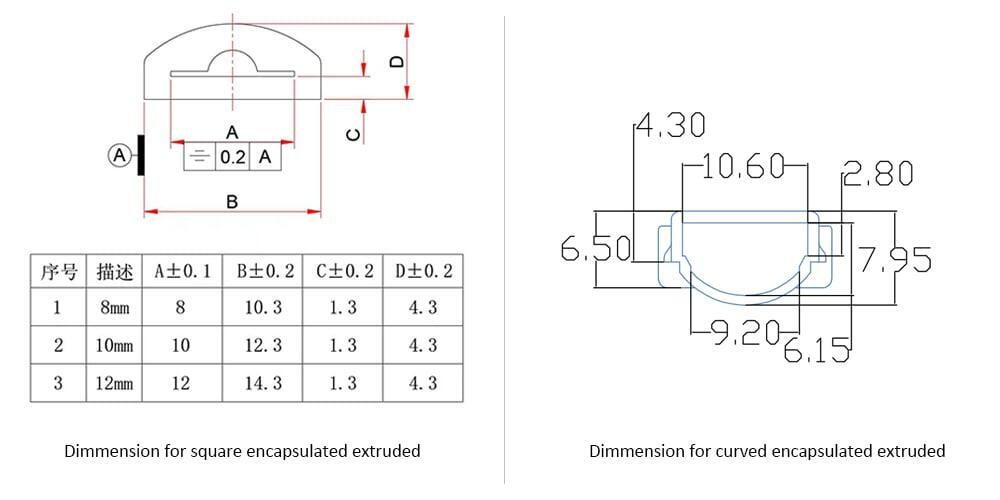

Recommend Dimension

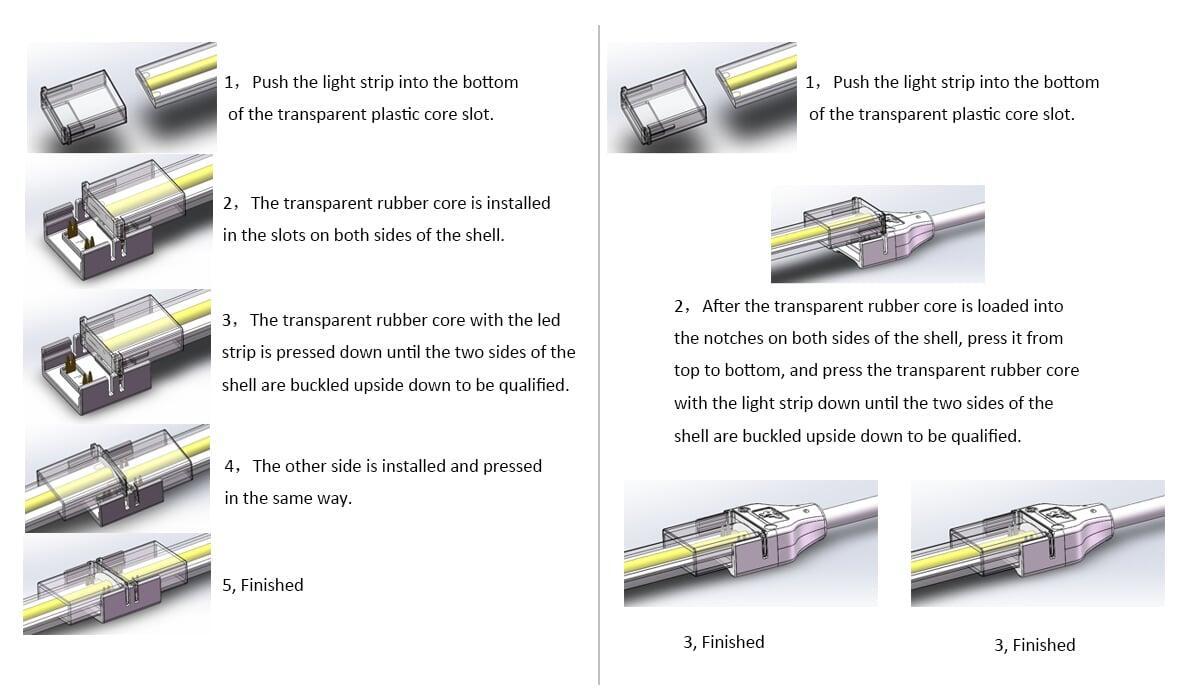

Installation
