IP20-10mm PCB 3P COB Connector
- Brief Info

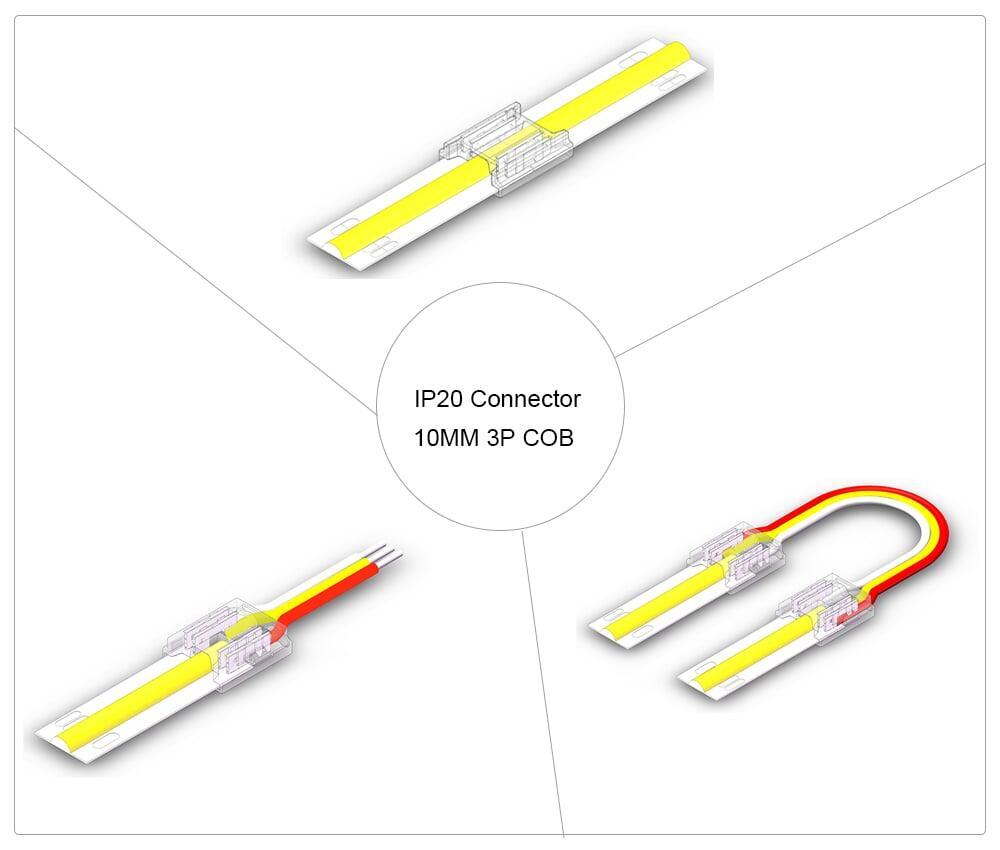

- Types: Strip to Strip Joint, strip to power, strip to strip bridge
- Applicable Strip: 10MM 3P IP20 COB led strip light
- Workable PCB Type: Flexible
- Workable Wire: 22AWG/0.34 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |
| 34# | HR-S-COB-4PIN-10MM-A |   | Strip to strip Joint; | Used for 10mm 3P IP20 COB strip light |

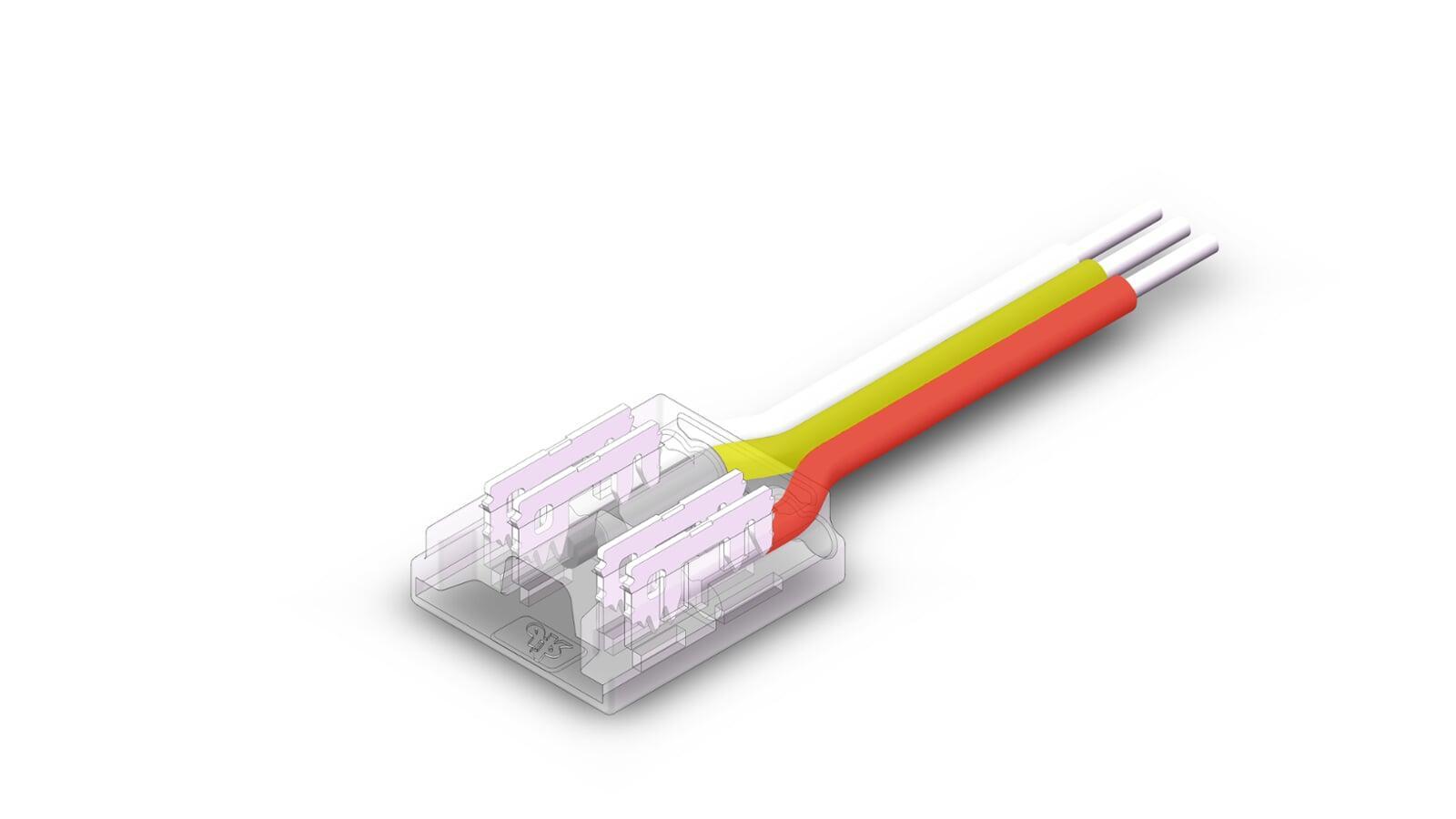

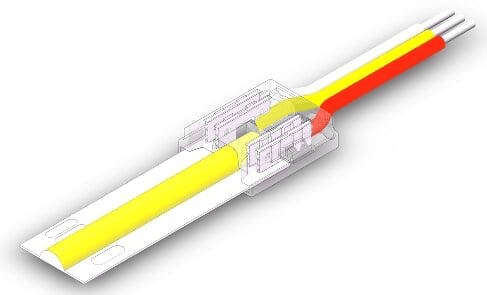

| 33# | HR-S-COB-3PIN-10MM-B |   | Strip to wire, with 20AWG wire. | Used for 10mm 3P IP20 COB strip light |

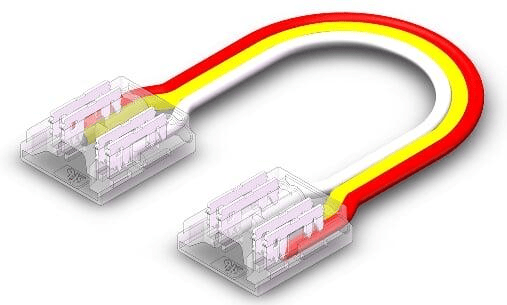

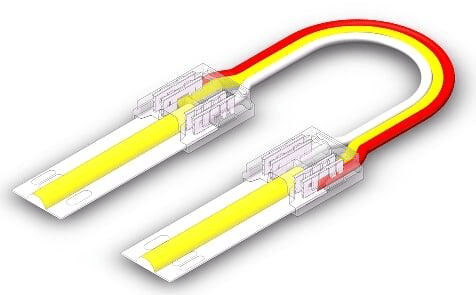

| 35# | HR-S-COB-3PIN-10MM-C |   | Strip to Strip Bridge | Used for 10mm 3P IP20 COB strip light |
Data Sheet
Used for 10mm 2P IP20 COB/SMD strip light
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 34# HR-S-COB-4PIN-10MM-A | Strip to Strip Joint | 10mm 3P COB IP20 strip light | 5-48V/6A | 13.5x11.5x3.7mm | PC+Copper | / | Transparent |
| 33# HR-S-COB-3PIN-10MM-B | Strip to Wire | 10mm 3P COB IP20 strip light | 5-48V/4A | 13.5x11.5x4.2mm | PC+Copper | 150MM Length 22AWG/0.34mm² | Transparent |
| 35# HR-S-COB-3PIN-10MM-C | Strip to Strip Bridge | 10mm 3P COB IP20 strip light | 5-48V/4A | 13.5x11.5x4.2mm | PC+Copper | 150MM Length 22AWG/0.34mm² | Transparent |
Installation
