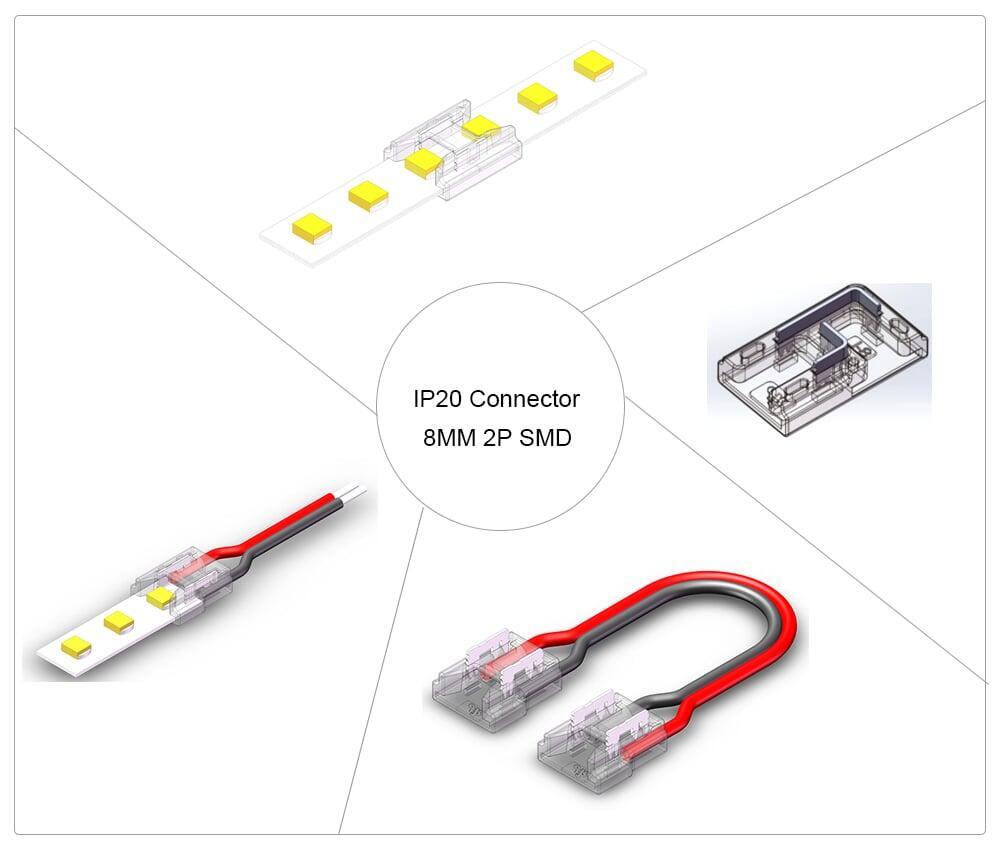

IP20-8mm PCB 2P SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, L shape
- Applicable Strip: 8MM 2P IP20 led strip light
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

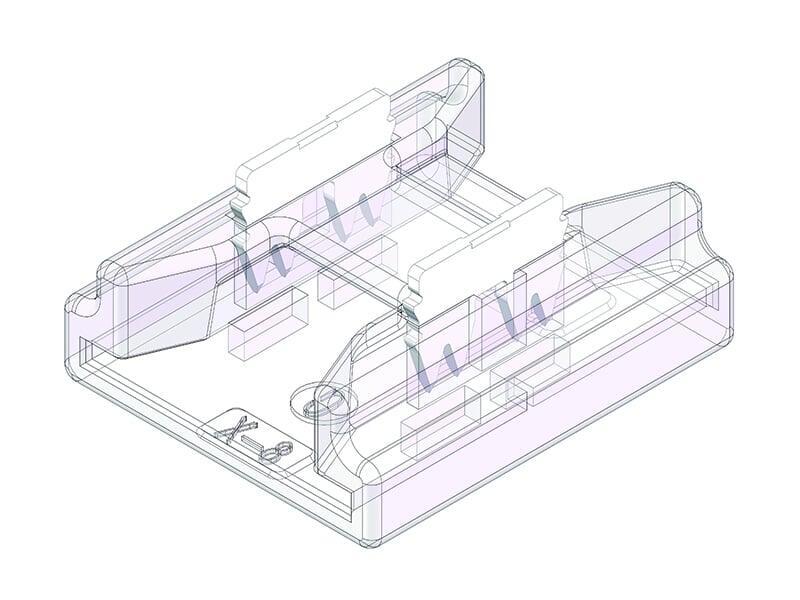

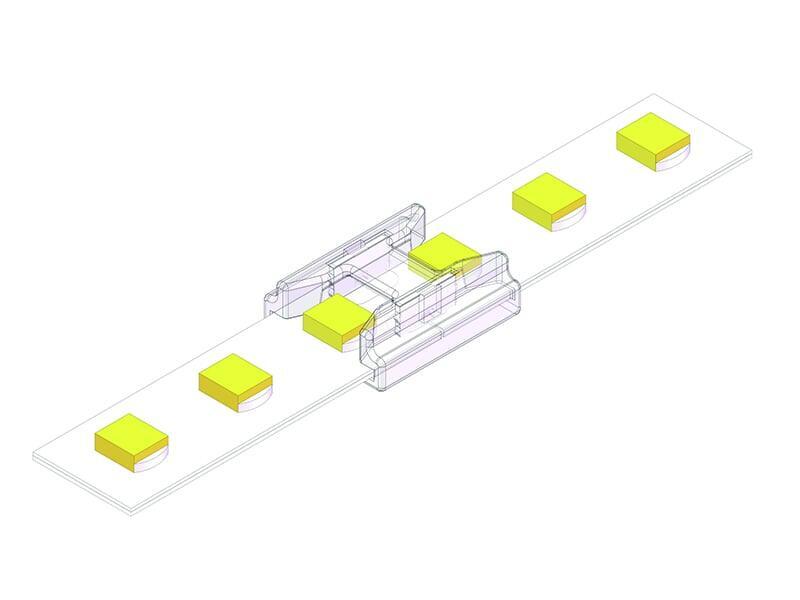

| 163# | HR-S-SC-2PIN-8MM-A1 |   | Strip to strip Joint; | Used for 8mm 2P IP20 SMD strip light |

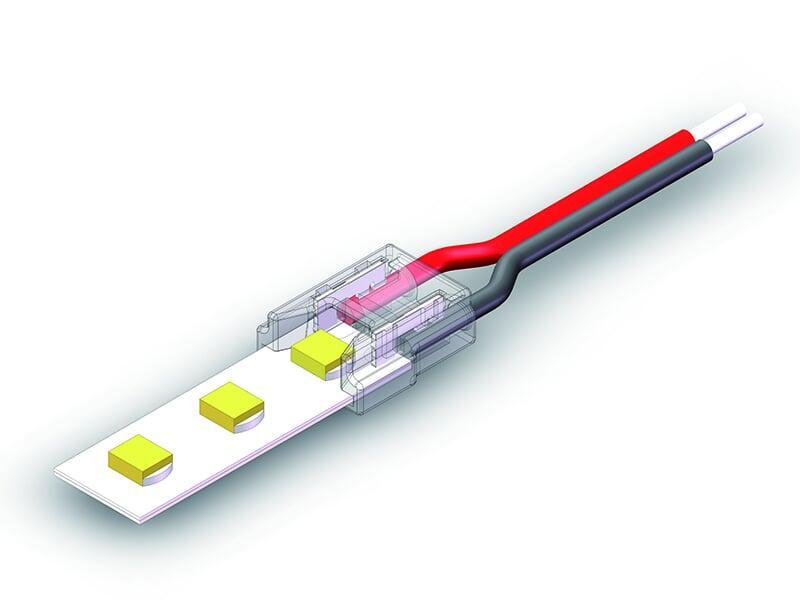

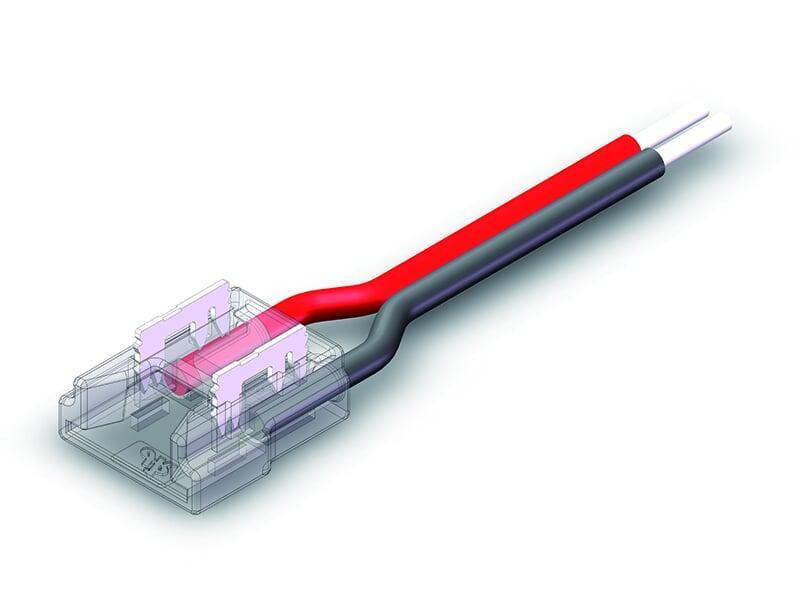

| 162# | HR-S-SC-2PIN-8MM-B1 |   | Strip to wire, with 20AWG wire. | Used for 8mm 2P IP20 SMD strip light |

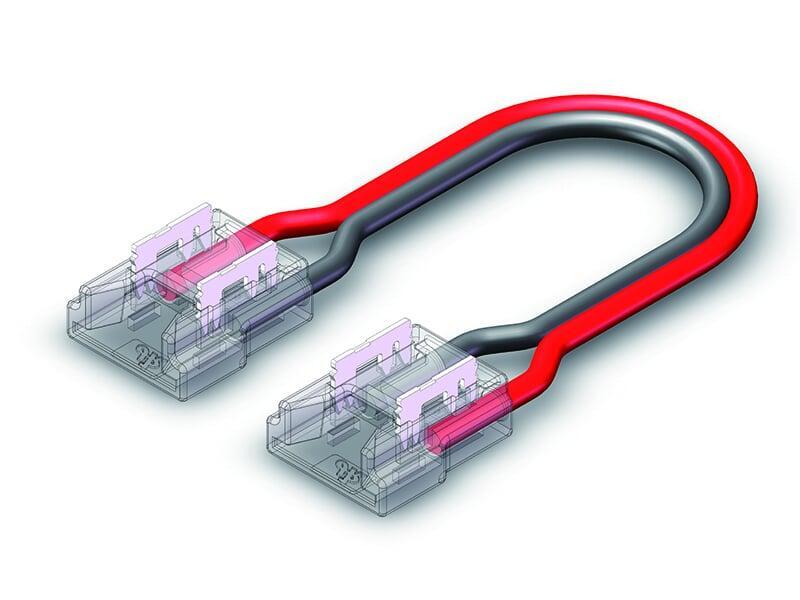

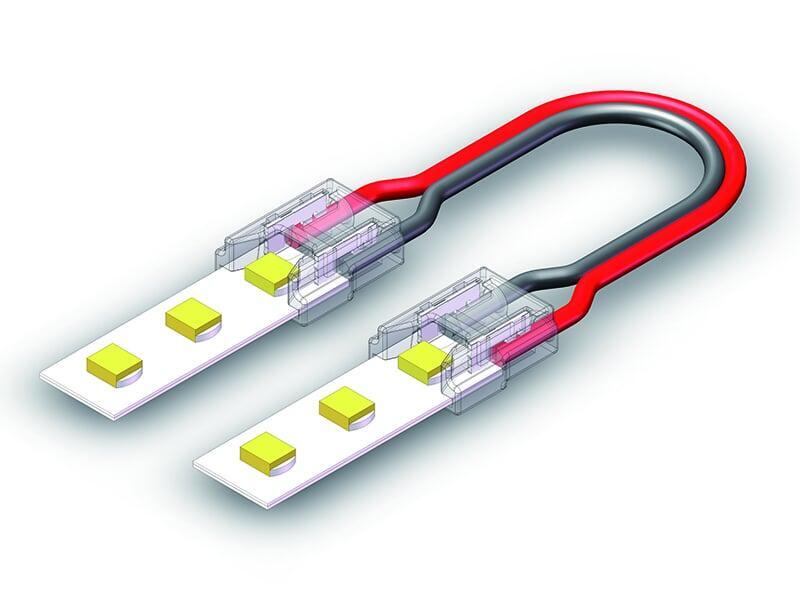

| 164# | HR-S-SC-2PIN-8MM-C1 |   | Strip to Strip Bridge | Used for 8mm 2P IP20 SMD strip light |

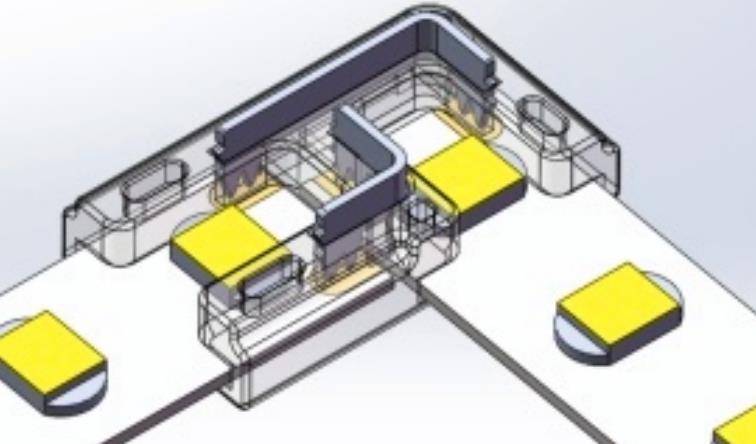

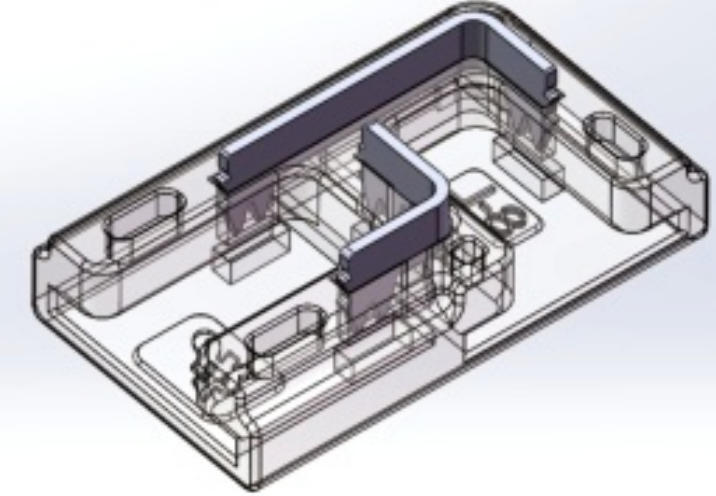

| 179# | HR-S-SC-2PIN-8MM-L1 |   | Strip to strip L shape | Used for 8mm 2P IP20 SMD strip light |
Data Sheet
Used for 5mm 2P IP20 COB strip light
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 163# HR-S-SC-2PIN-8MM-A1 | Strip to Strip Joint | 8mm 2P SMD IP20 strip light | 5-48V/4A | 11.5x9.8x3.7mm | PC+Copper | / | Transparent |
| 162# HR-S-SC-2PIN-8MM-B1 | Strip to Wire | 8mm 2P SMD IP20 strip light | 5-48V/4A | 11.5x9.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
| 164# HR-S-SC-2PIN-8MM-C1 | Strip to Strip Bridge | 8mm 2P SMD IP20 strip light | 5-48V/4A | 11.5x9.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
| 179# HR-S-SC-2PIN-8MM-L1 | Strip to Strip L Shape | 8mm 2P SMD IP20 strip light | 5-48V/5A | 17x910x3.7mm | PC+Copper | / | Transparent |

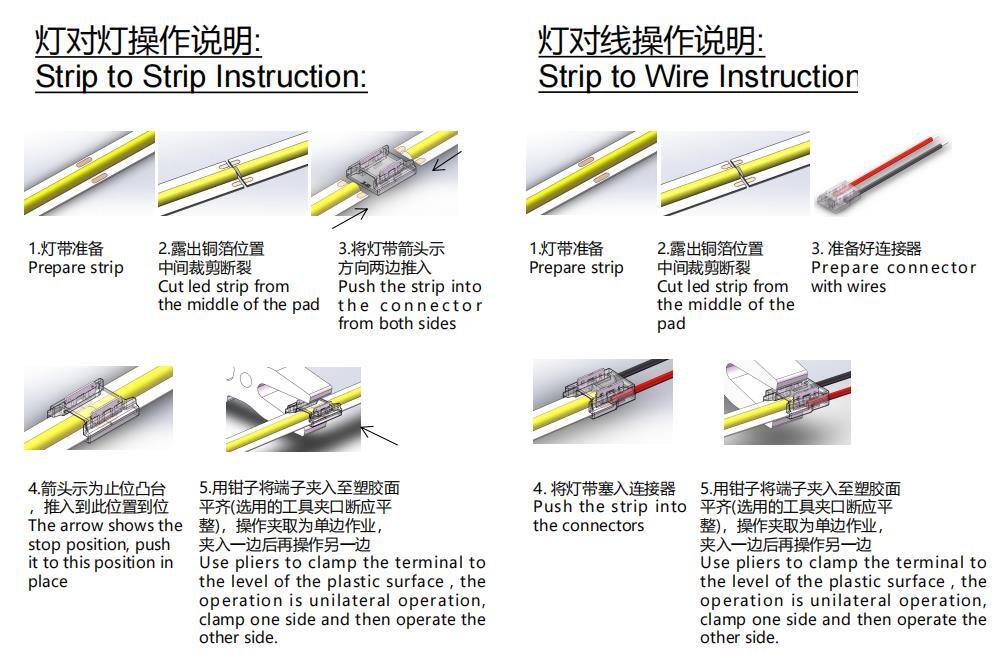

Installation
