IP20-8mm PCB 2P COB/SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, L shape, T shape
- Applicable Strip: 8MM 2P IP20 led strip light
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

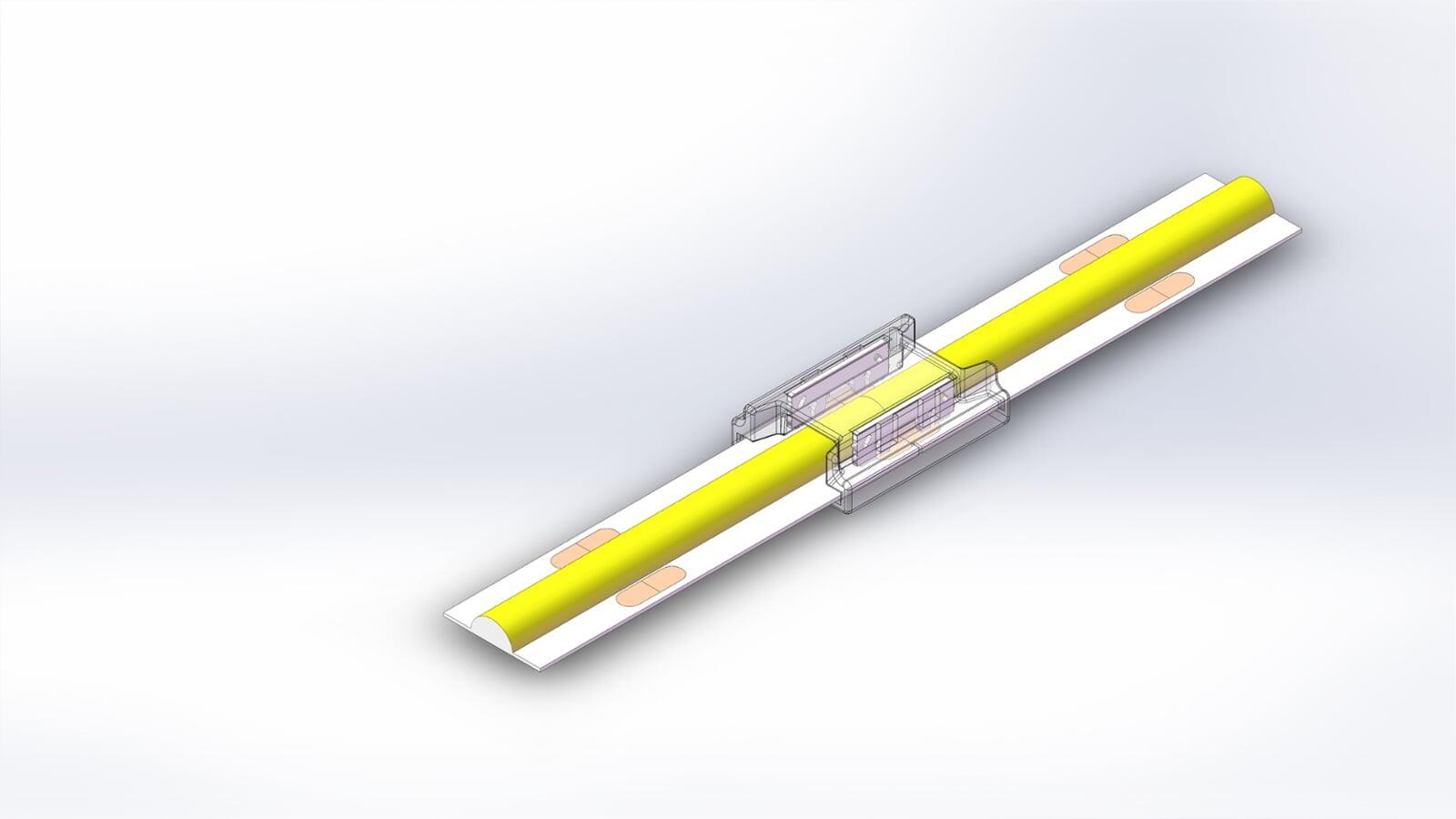

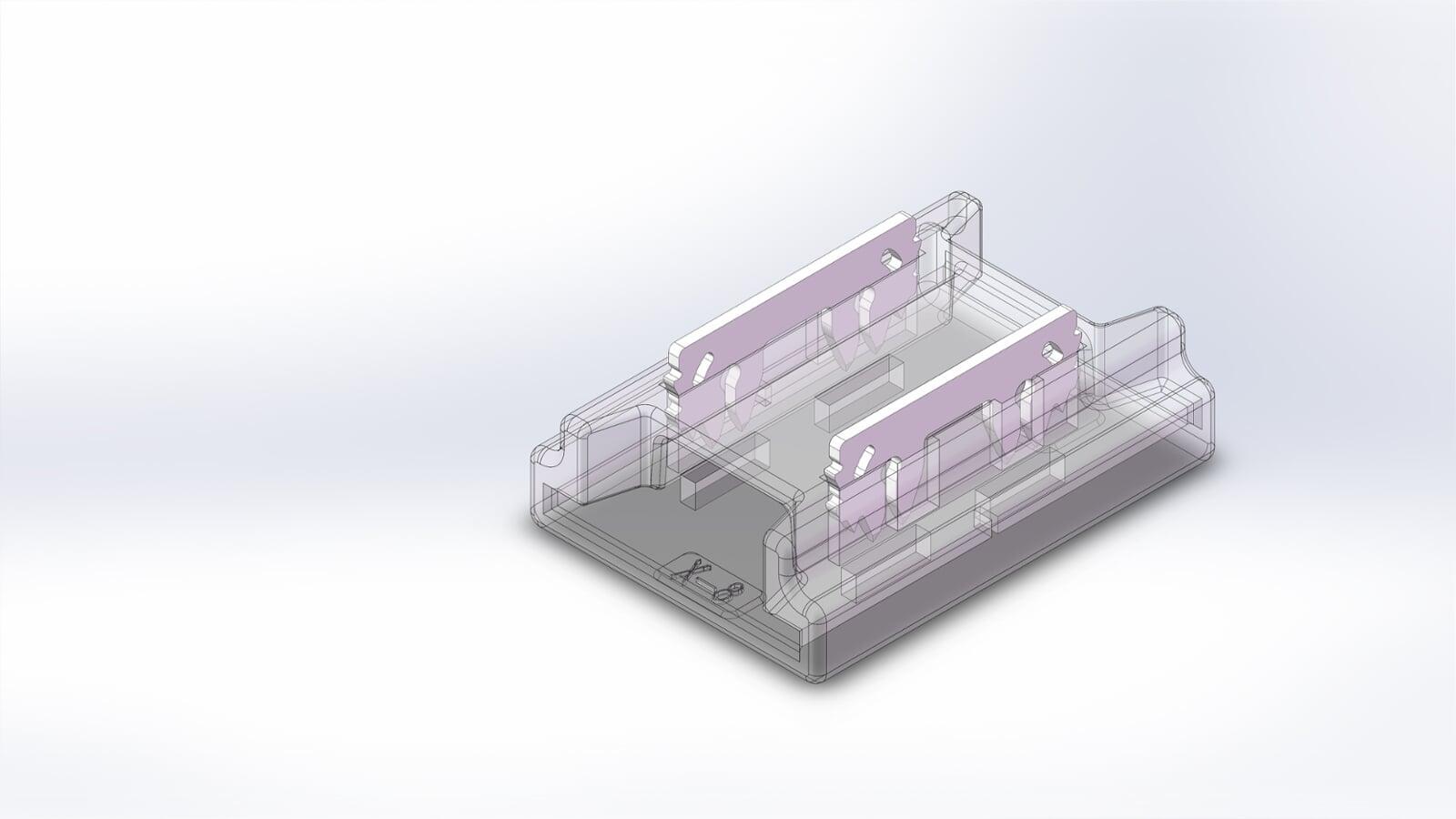

| 10# | HR-S-SC-2PIN-8MM-A |   | Strip to strip Joint; | Used for 8mm 2P IP20 COB strip light |

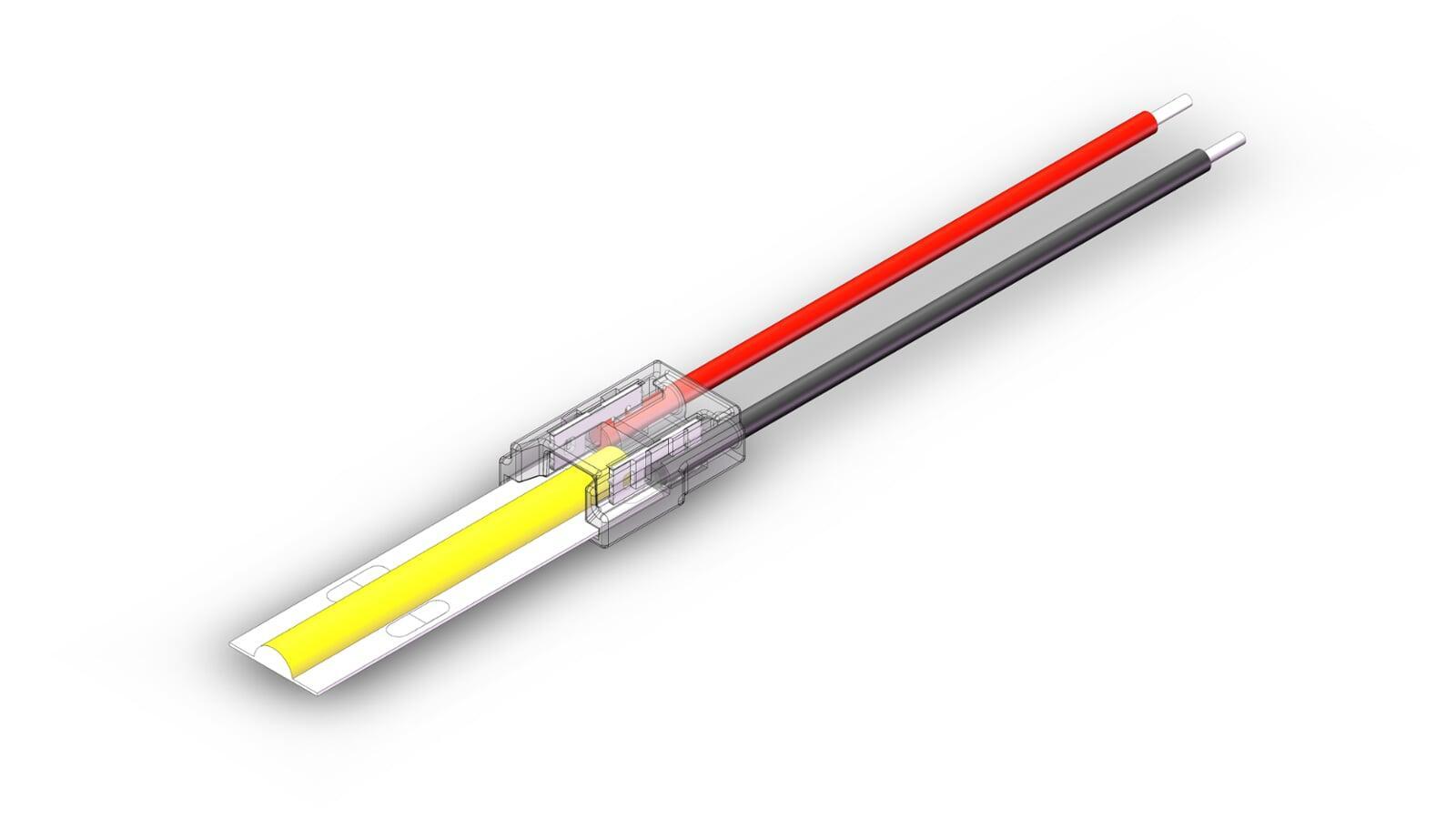

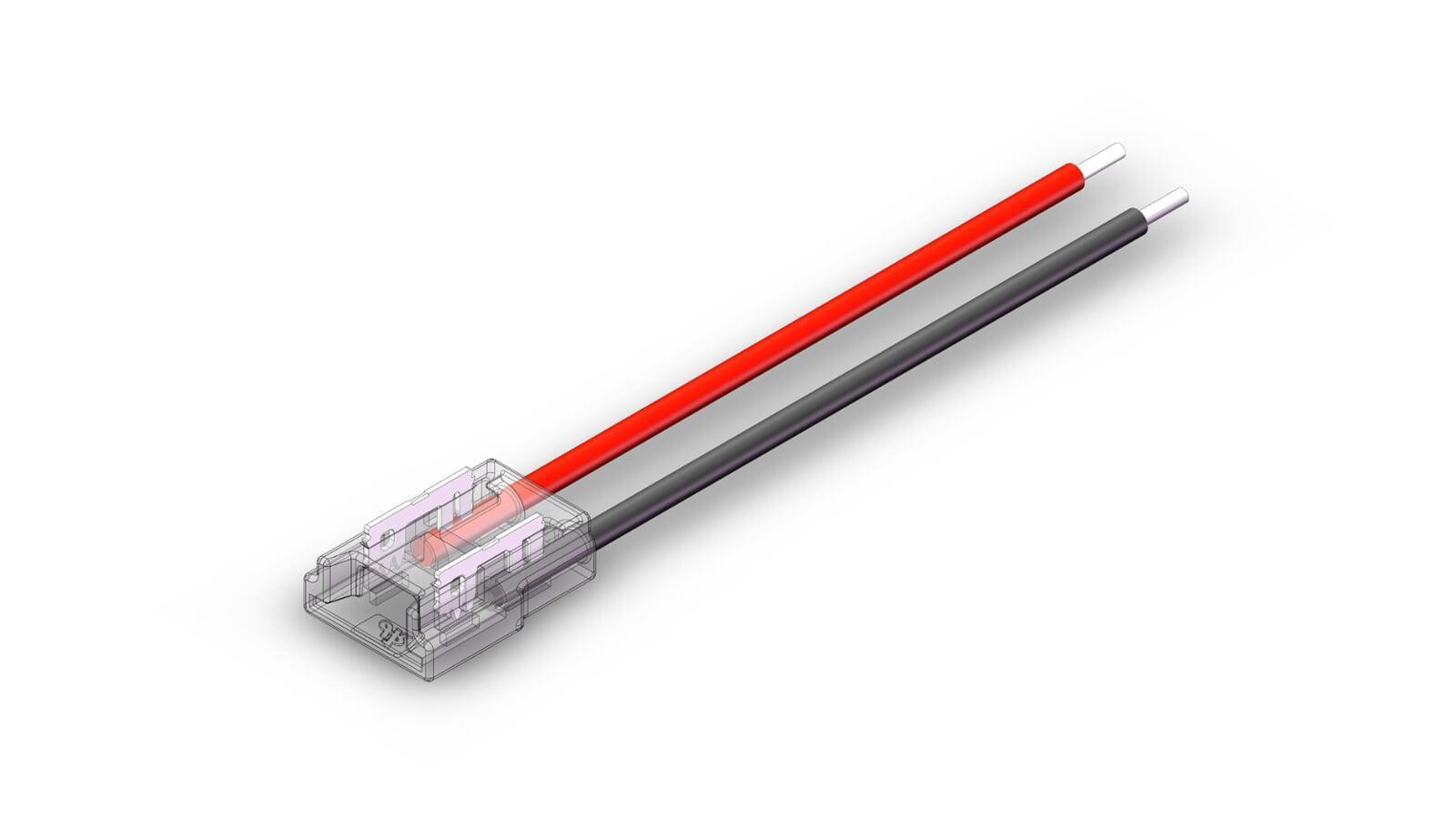

| 9# | HR-S-SC-2PIN-8MM-B |   | Strip to wire, with 20AWG wire. | Used for 8mm 2P IP20 COB strip light |

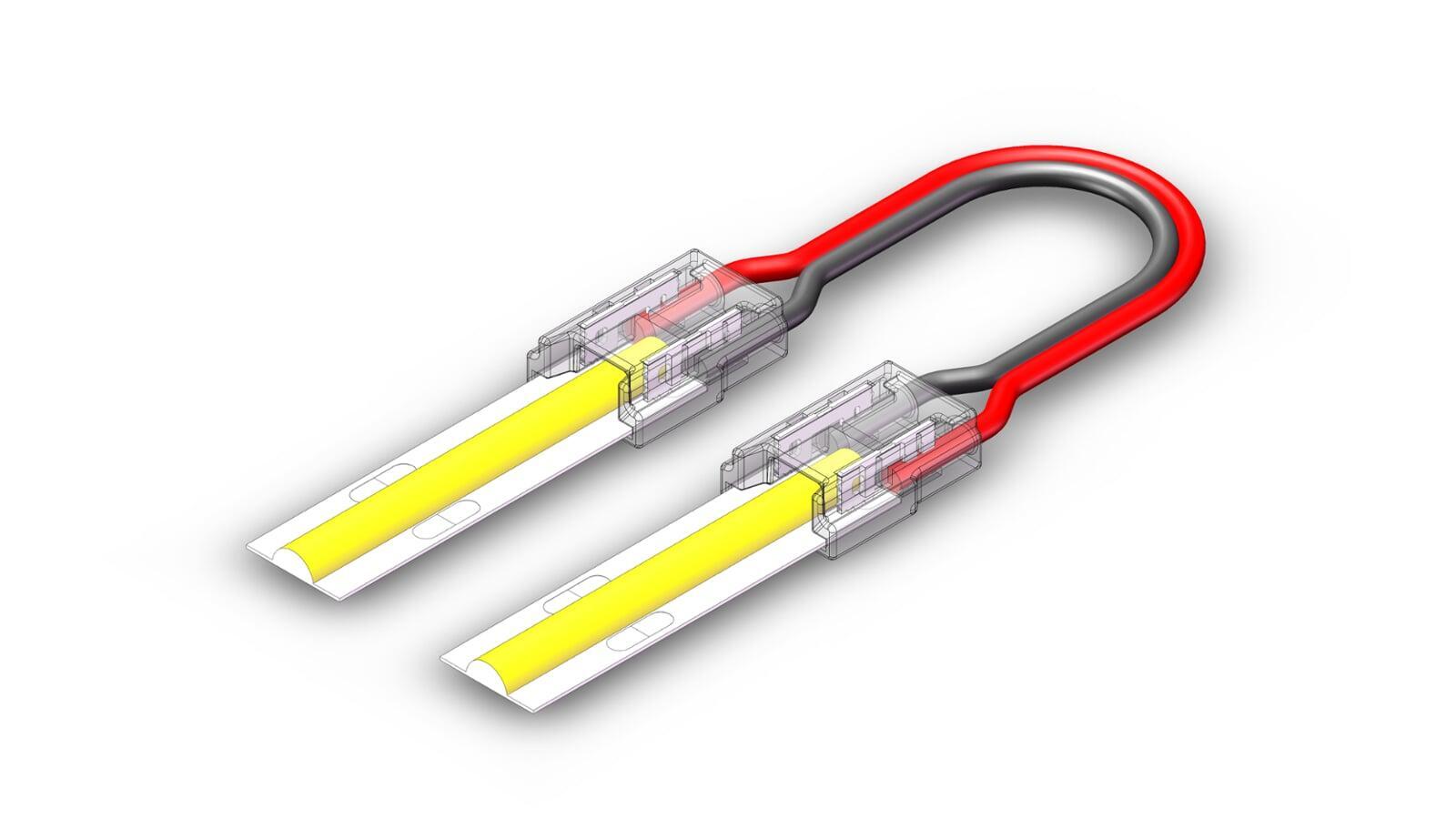

| 11# | HR-S-SC-2PIN-8MM-C |   | Strip to Strip Bridge | Used for 8mm 2P IP20 COB strip light |

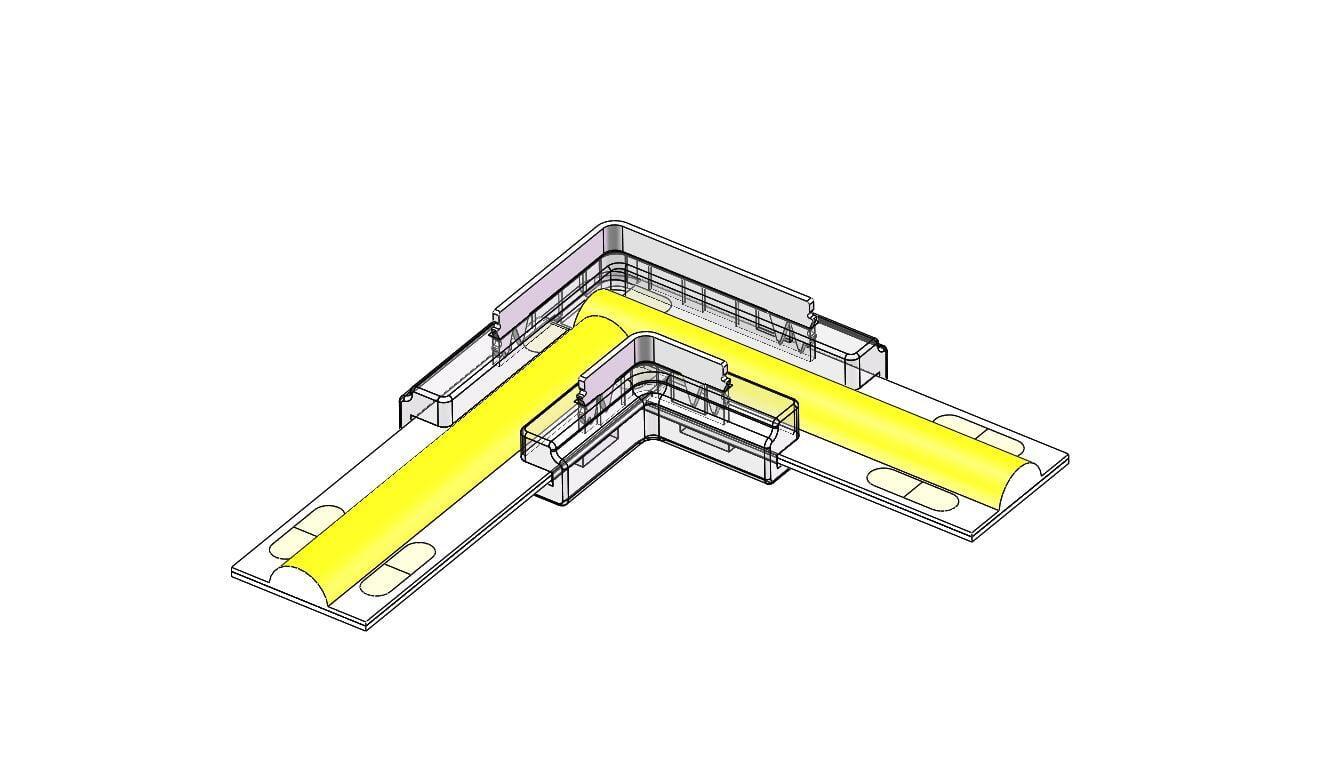

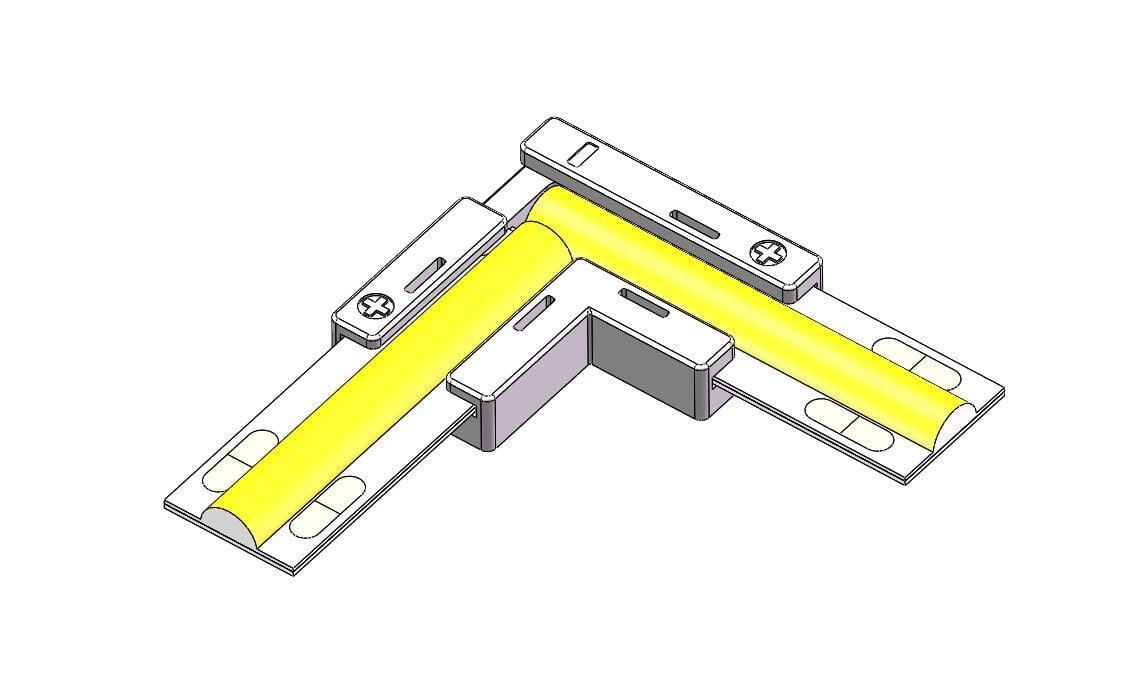

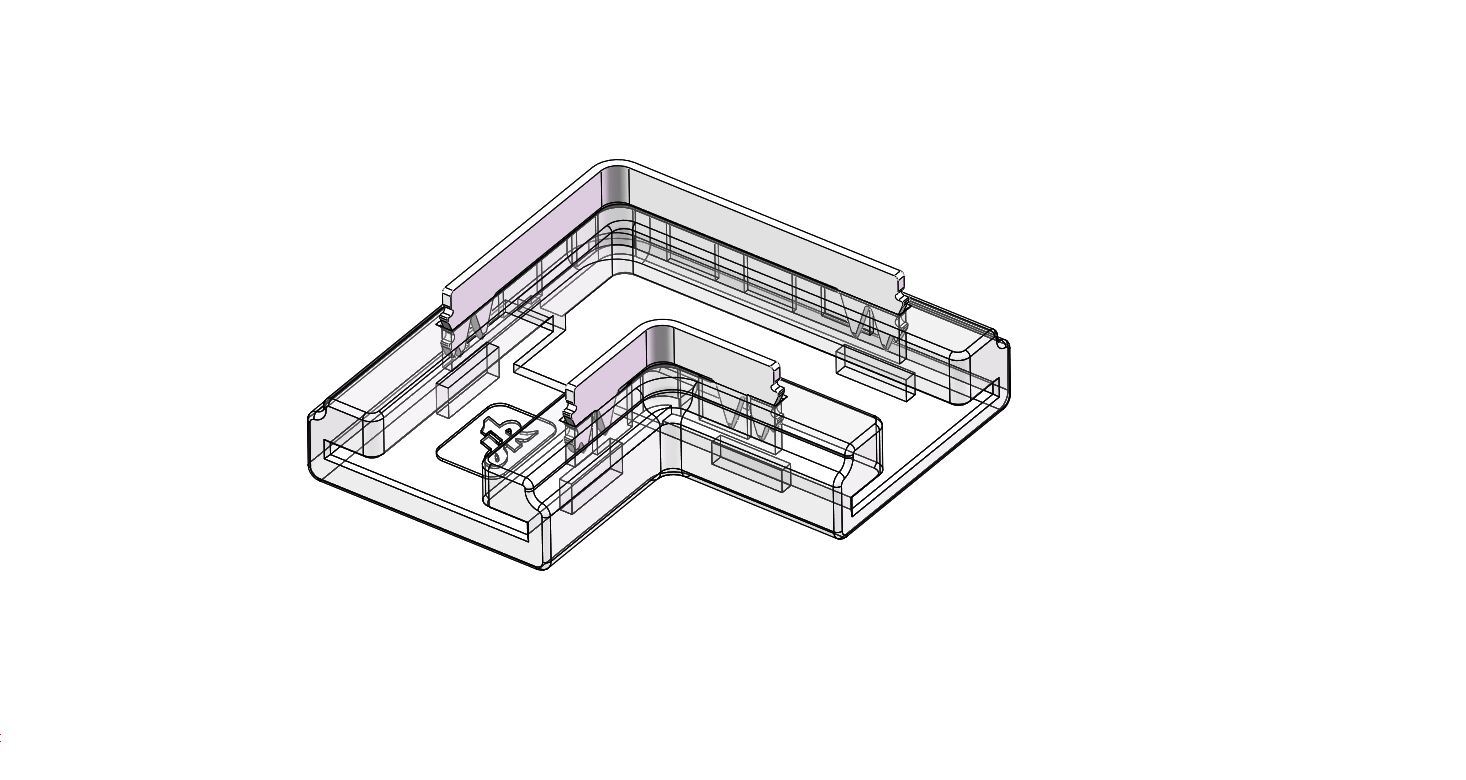

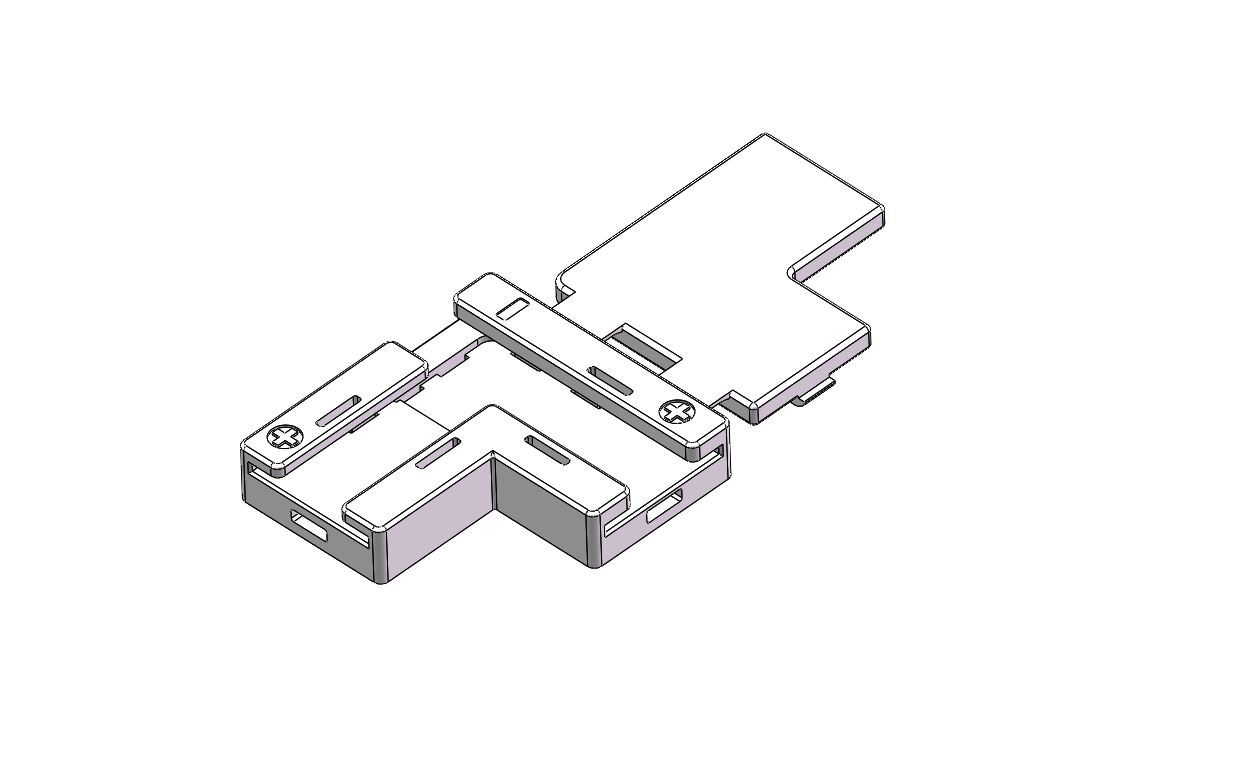

| 149# | HR-S-SC-2PIN-8MM-L |   | Strip to strip L shape | Used for 8mm 2P IP20 COB strip light |
| 151# | HR-S-SC-2PIN-8MM-T |   | Strip to strip T shape | Used for 8mm 2P IP20 COB strip light |
Data Sheet
Used for 8mm 2P IP20 COB/SMD strip light
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 10# HR-S-SC-2PIN-8MM-A | Strip to Strip Joint | 8mm 2P COB/SMD IP20 strip light | 5-48V/6A | 13.5x9.8x3.7mm | PC+Copper | / | Transparent |
| 9# HR-S-SC-8PIN-5MM-B | Strip to Wire | 8mm 2P COB/SMD IP20 strip light | 5-48V/6A | 13.5x9.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
| 11# HR-S-SC-2PIN-8MM-C | Strip to Strip Bridge | 8mm 2P COB/SMD IP20 strip light | 5-48V/6A | 13.5x9.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
| 149# HR-S-SC-2PIN-8MM-L | Strip to Strip L Shape | 8mm 2P COB IP20 strip light | 5-48V/6A | 17x9.15x3.55mm | PC+Copper | / | Transparent |
| 151# HR-S-SC-2PIN-8MM-T | Strip to Strip T Shape | 8mm 2P COB IP20 strip light | 5-48V/6A | 19.15x103.6mm | PC+Copper | / | Milky white |
Installation
