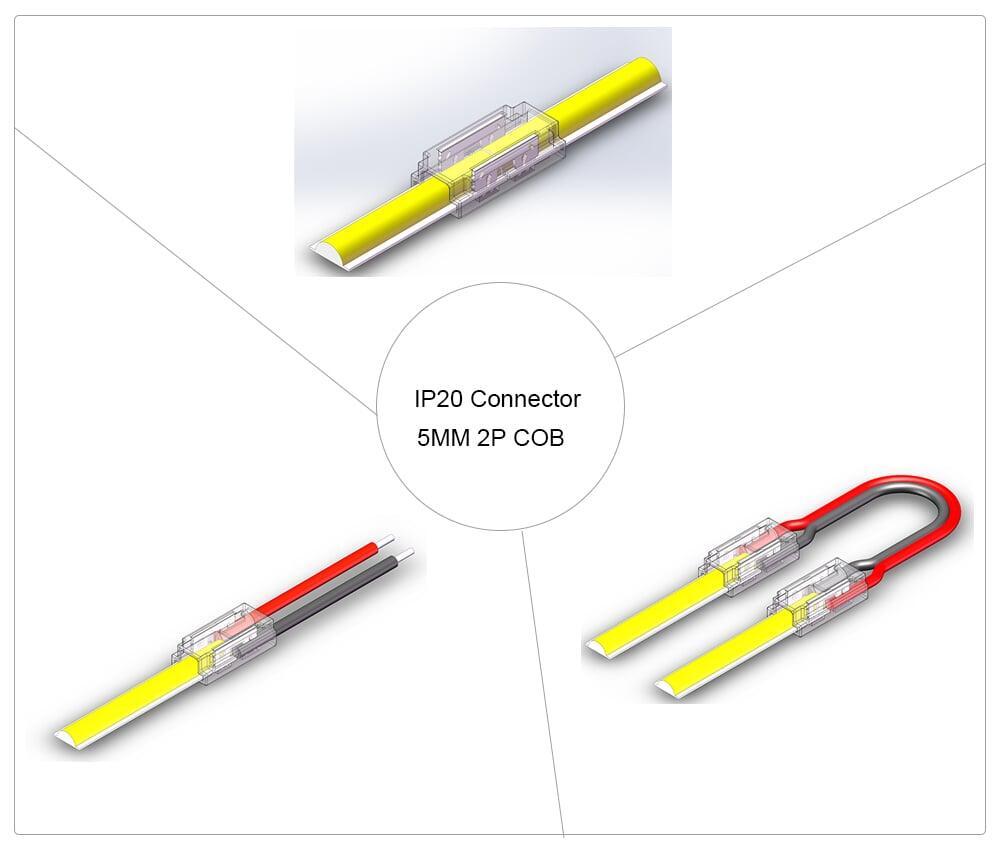

IP20-5mm PCB 2P COB Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge
- Applicable Strip: 5MM 2P IP20 led strip light
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

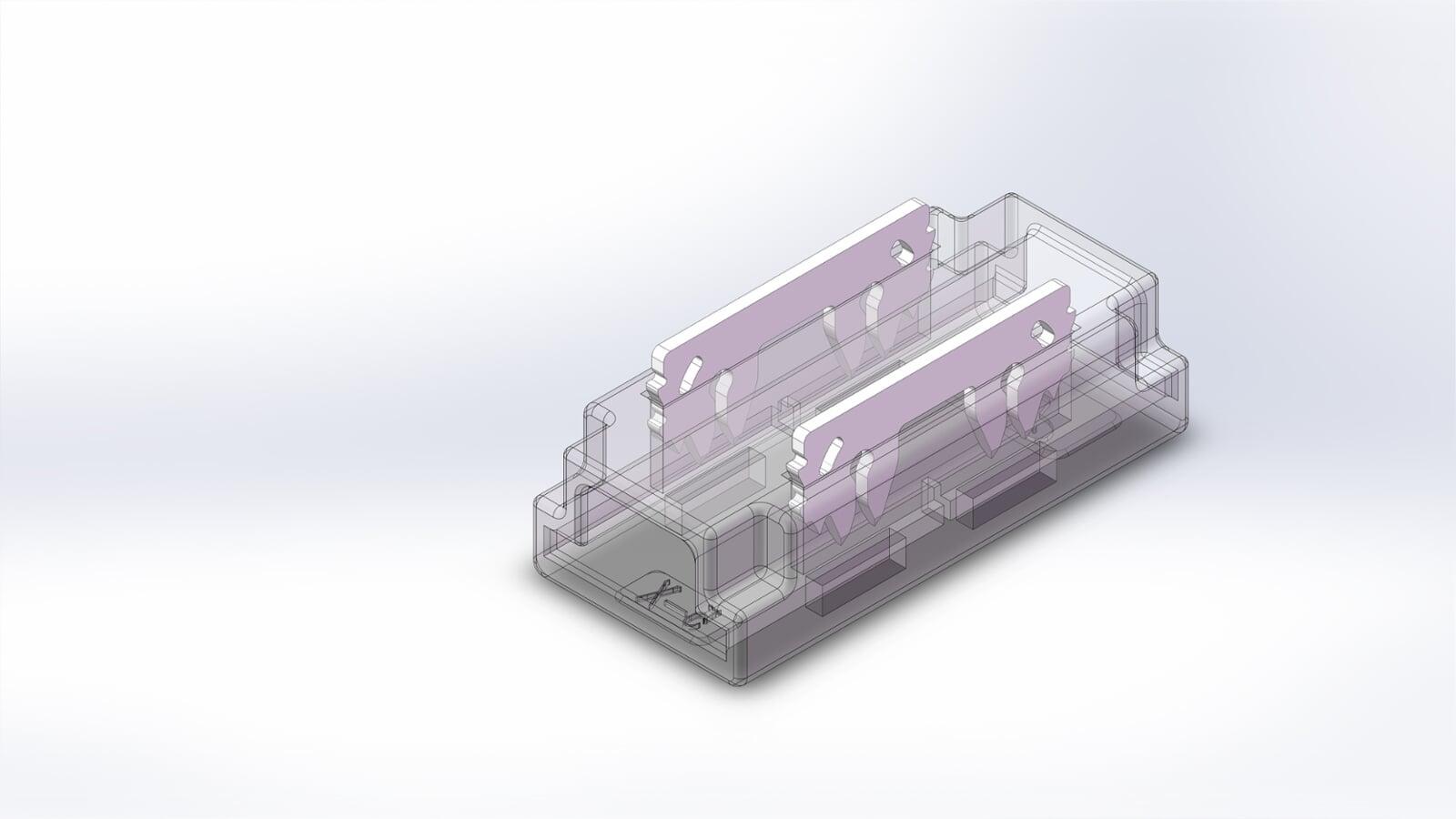

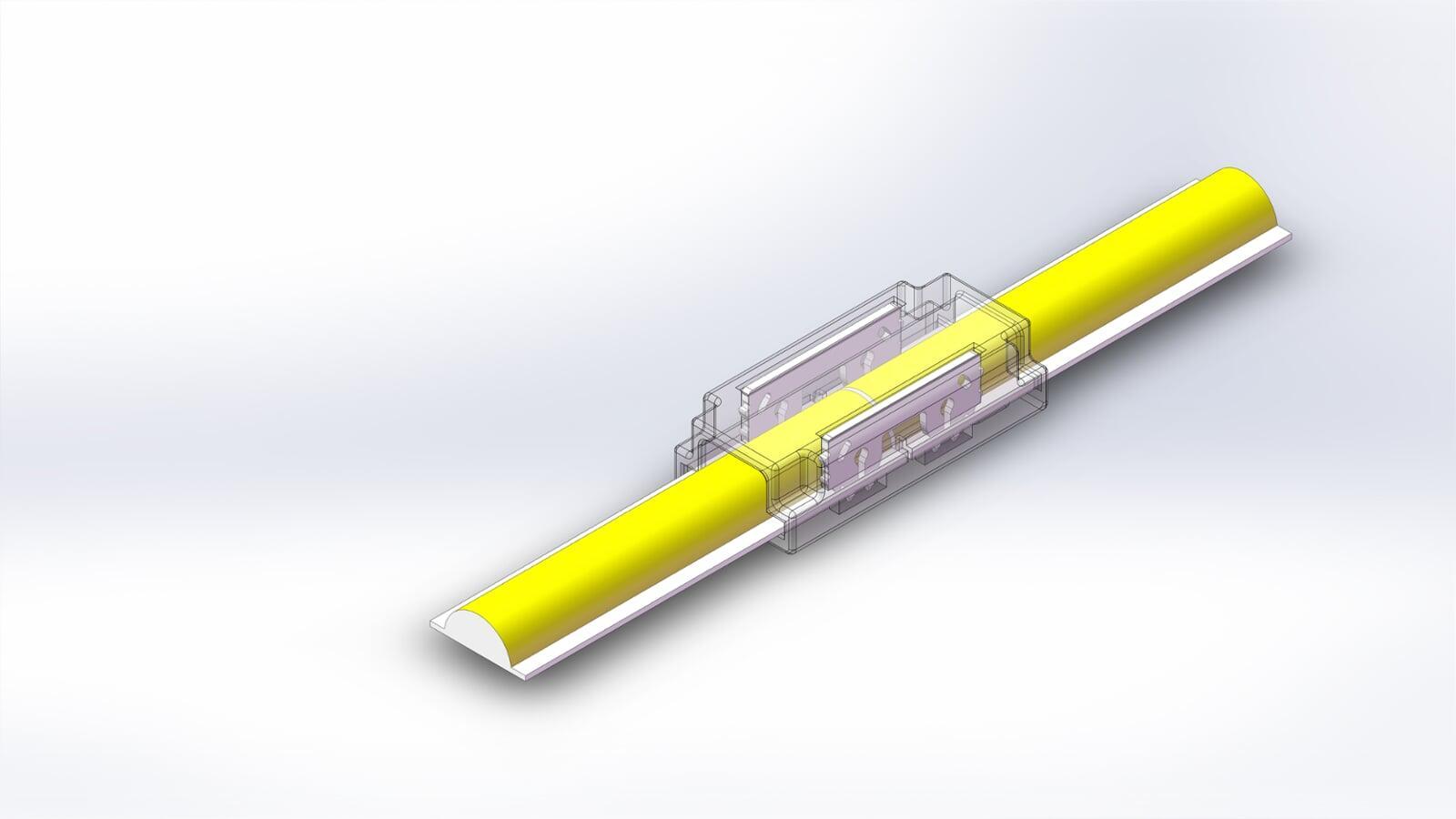

| 2# | HR-S-SC-2PIN-5MM-A |   | Strip to strip Joint; | Used for 5mm 2P IP20 COB strip light |

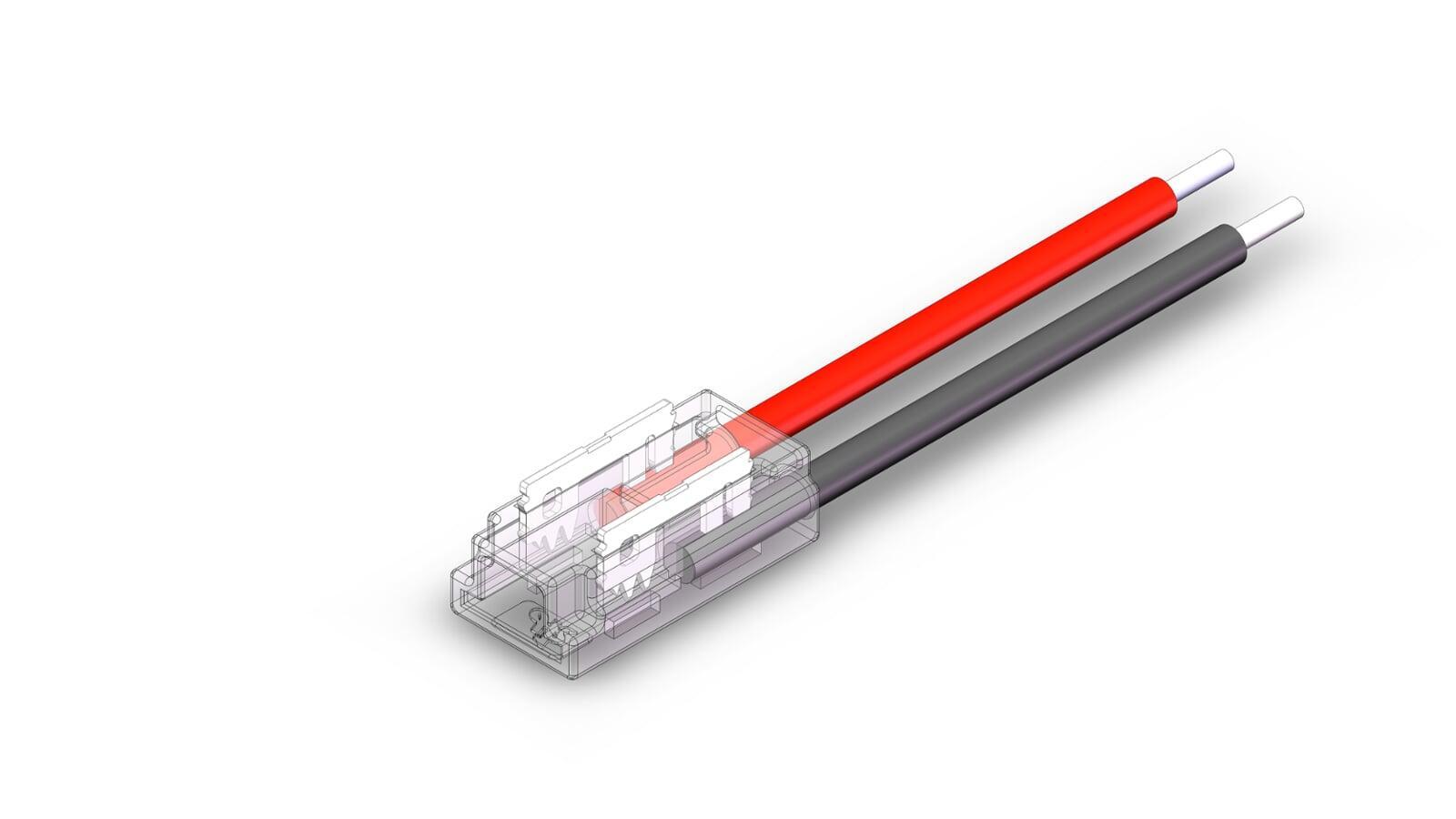

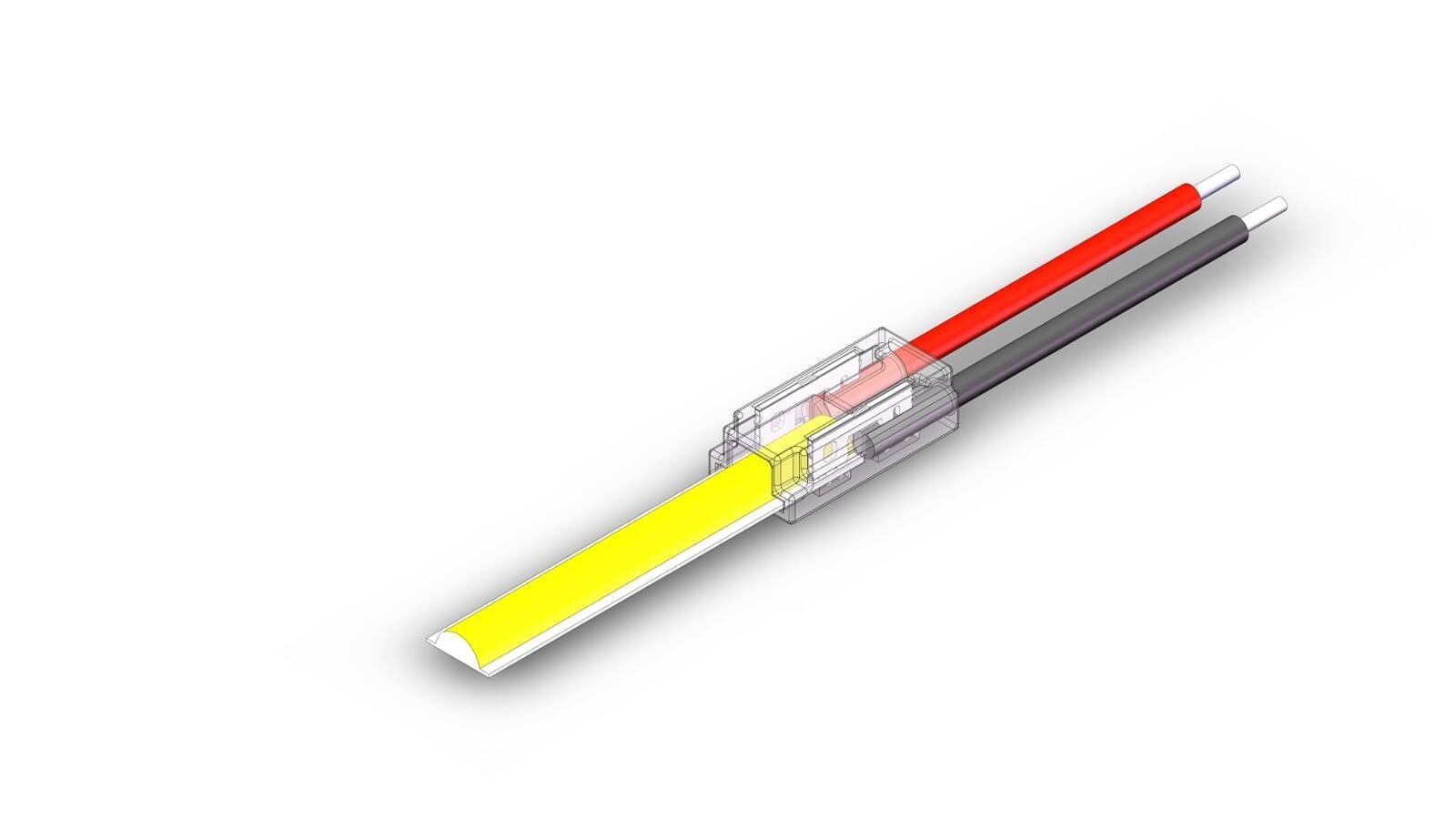

| 1# | HR-S-SC-2PIN-5MM-B |   | Strip to wire, with 20AWG wire. | Used for 5mm 2P IP20 COB strip light |

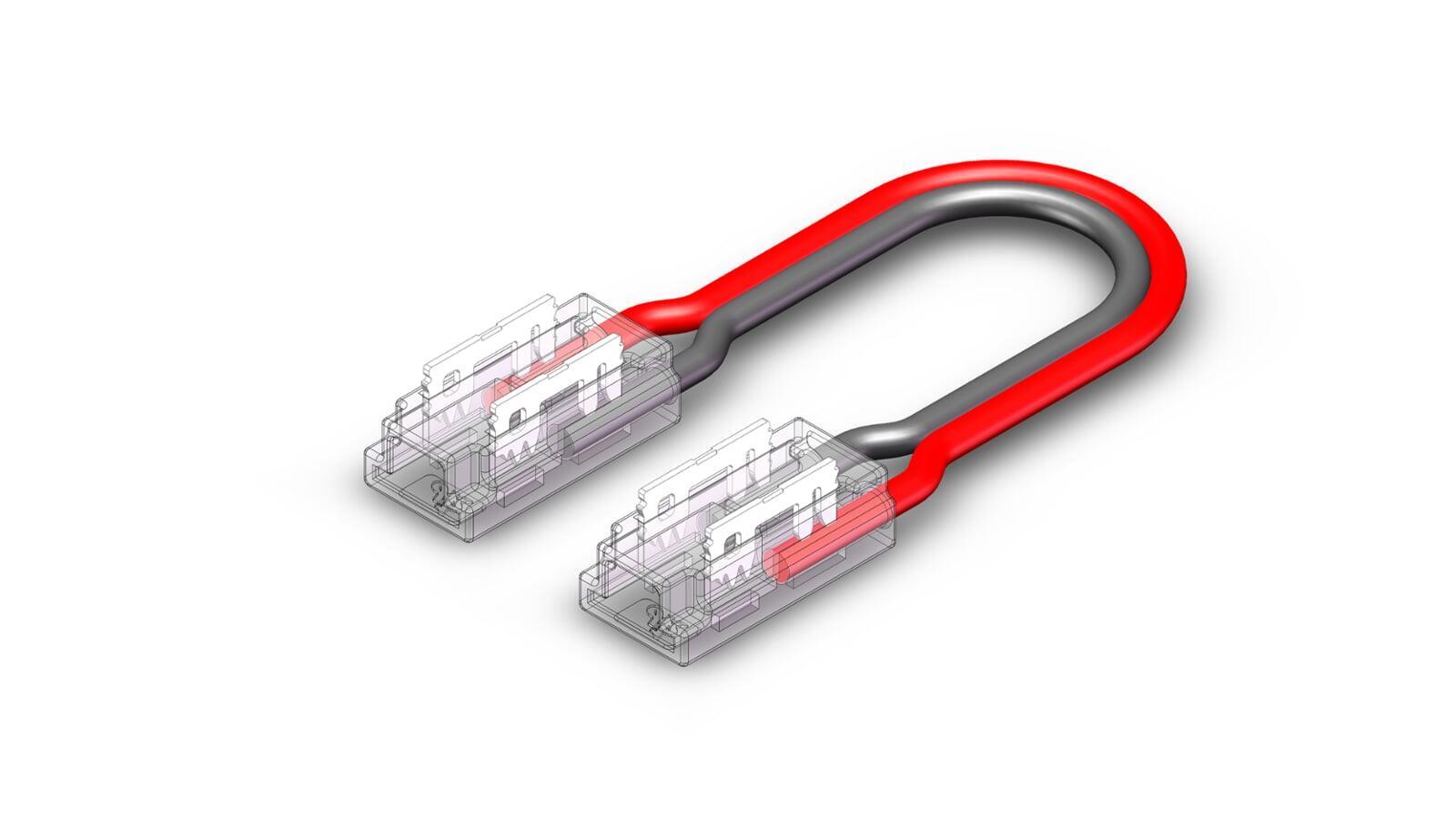

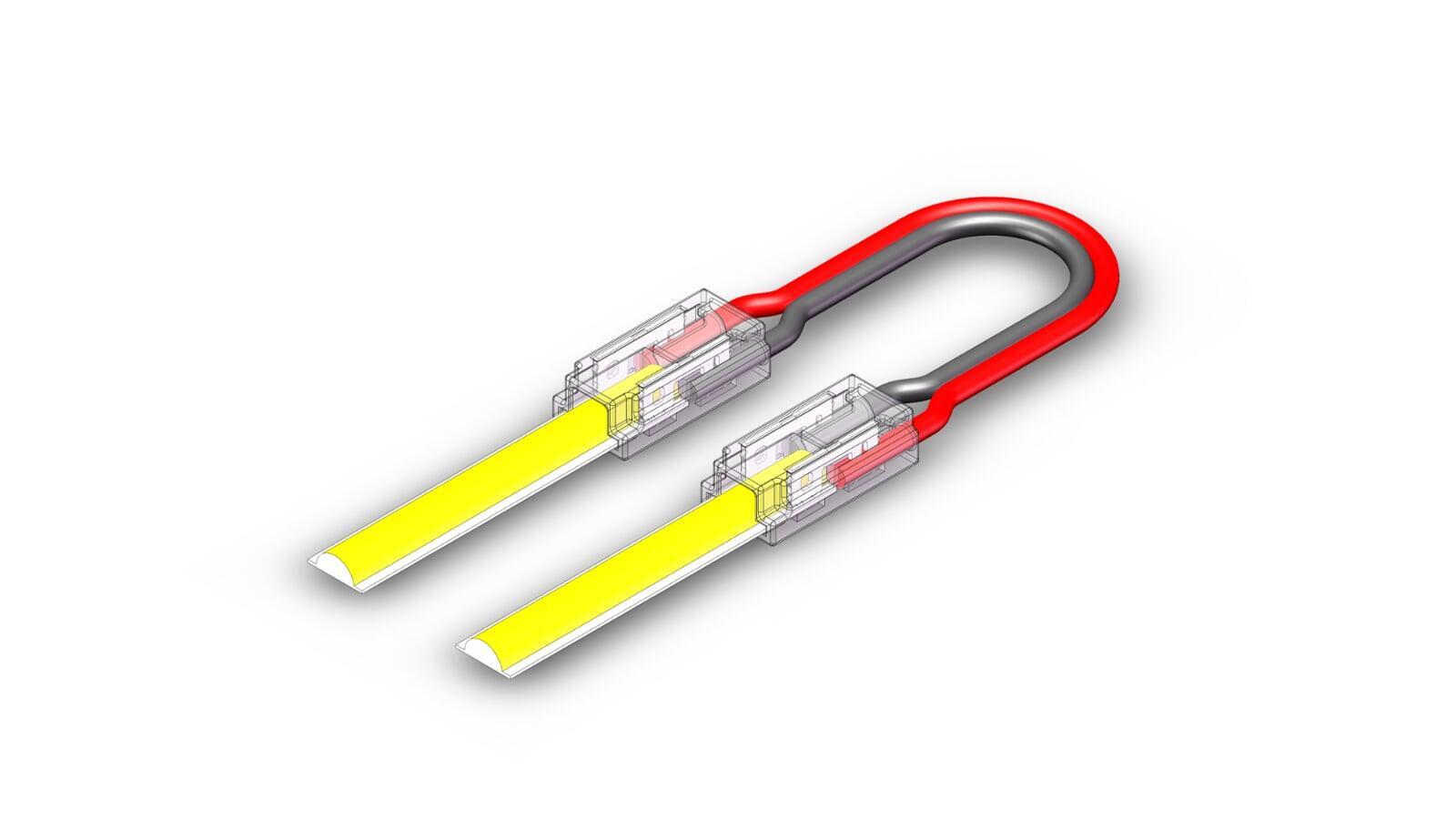

| 3# | HR-S-SC-2PIN-5MM-C |   | Strip to Strip Bridge | Used for 5mm 2P IP20 COB strip light |
Data Sheet
Used for 5mm 2P IP20 COB strip light
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 2# HR-S-SC-2PIN-5MM-A | Strip to Strip Joint | 5mm 2P COB IP20 strip light | 5-48V/5A | 13.5x6.3x3.7mm | PC+Copper | / | Transparent |
| 1# HR-S-SC-2PIN-5MM-B | Strip to Wire | 5mm 2P COB IP20 strip light | 5-48V/5A | 13.5x6.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
| 3# HR-S-SC-2PIN-5MM-C | Strip to Strip Bridge | 5mm 2P COB IP20 strip light | 5-48V/5A | 13.5x6.8x4.2mm | PC+Copper | 150MM Length 20AWG/0.52mm² | Transparent |
Installation
