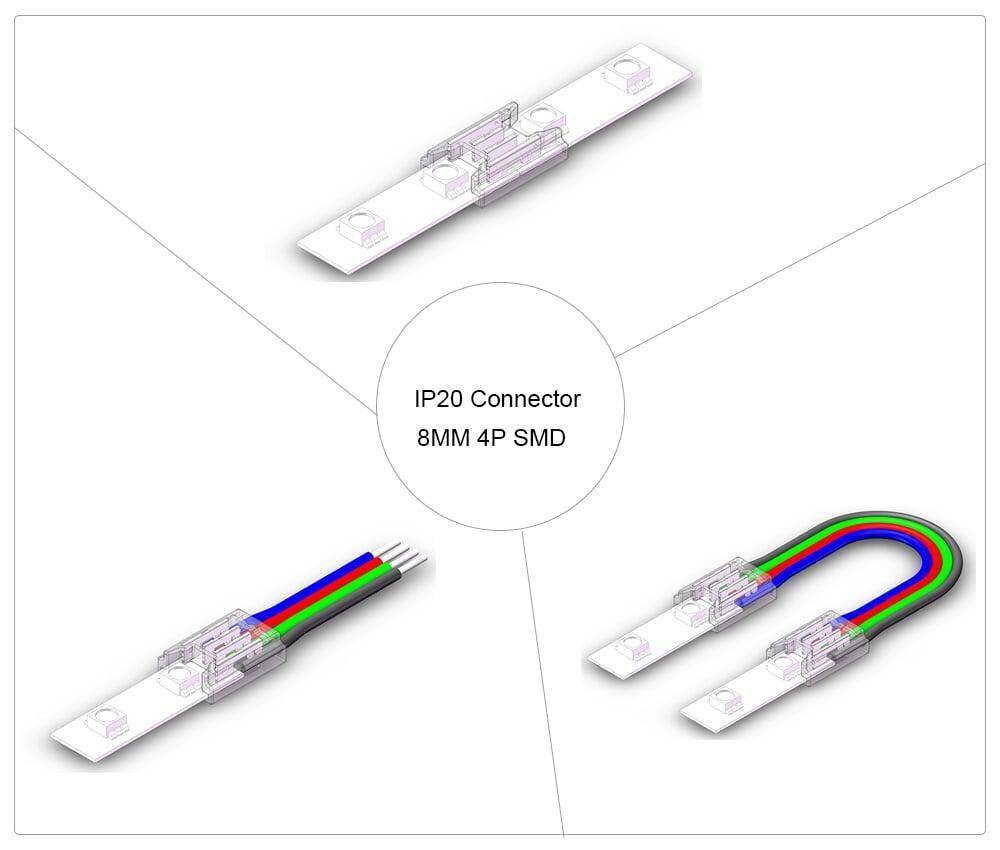

IP20-8mm PCB 4P SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge
- Applicable Strip: 8MM 4P IP20 SMD led strip light
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

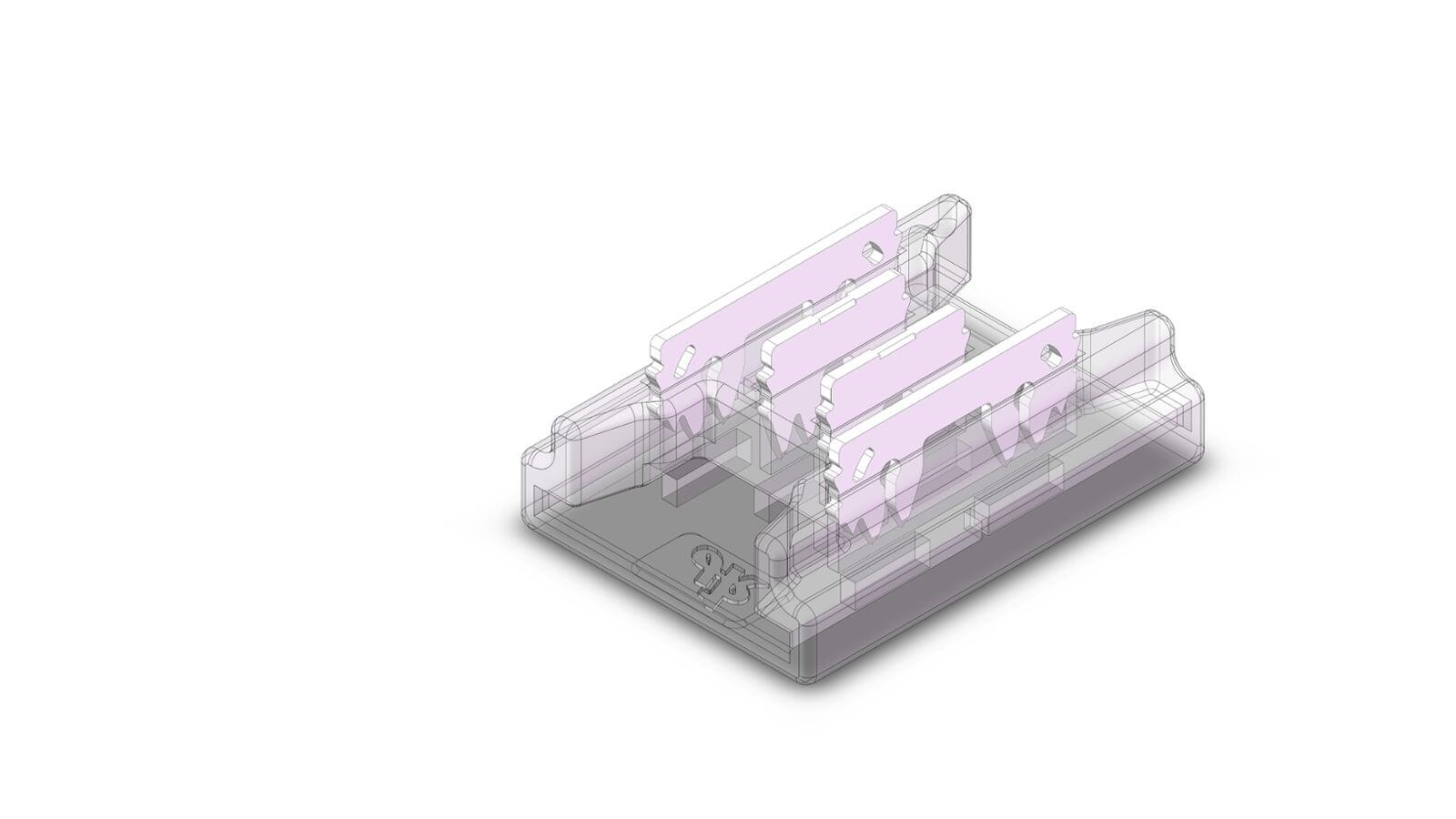

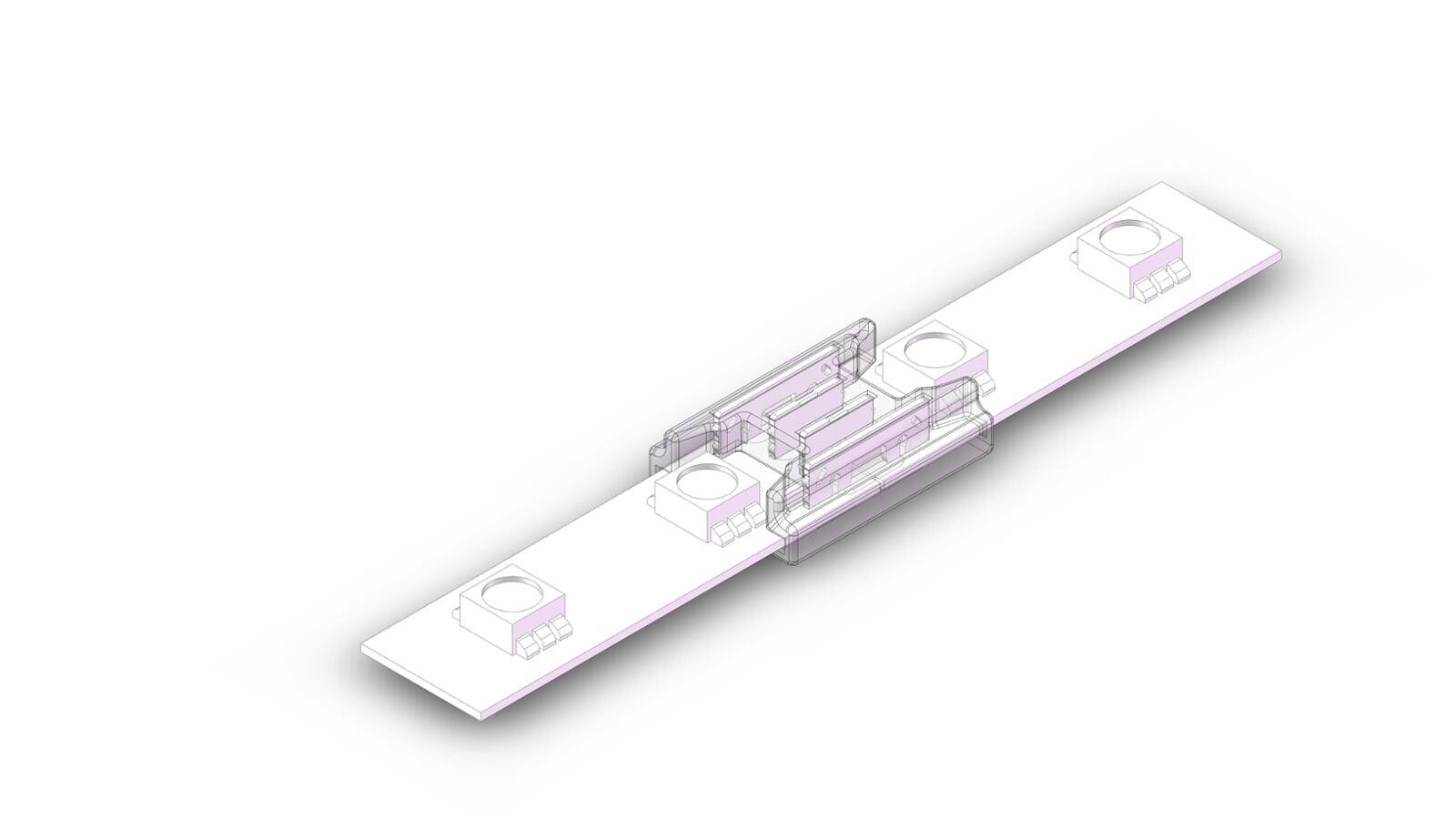

| 18# | HR-S-SMD-4PIN-8MM-A |   | Strip to strip Joint; | Used for 8mm 4P IP20 SMD strip light |

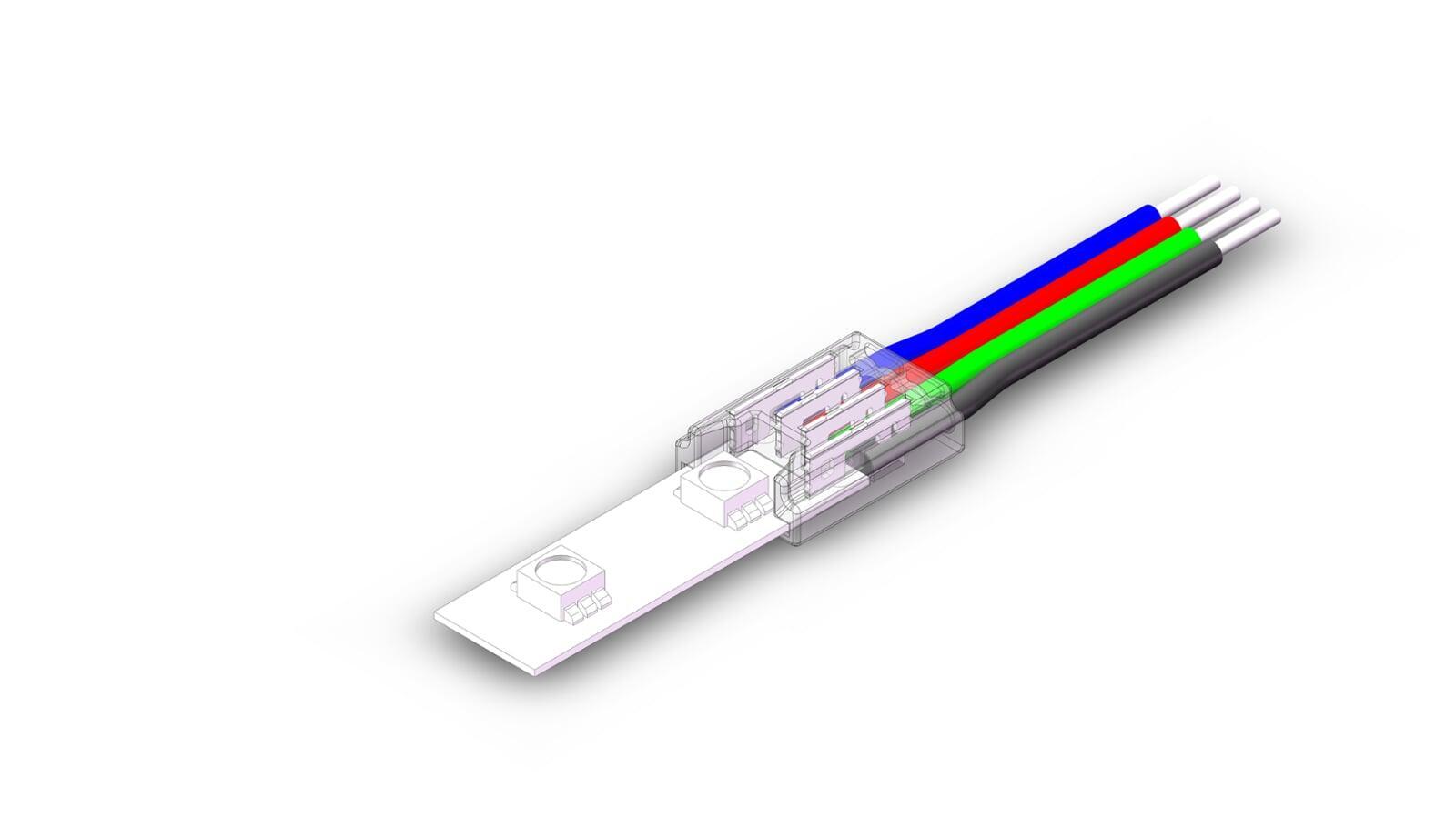

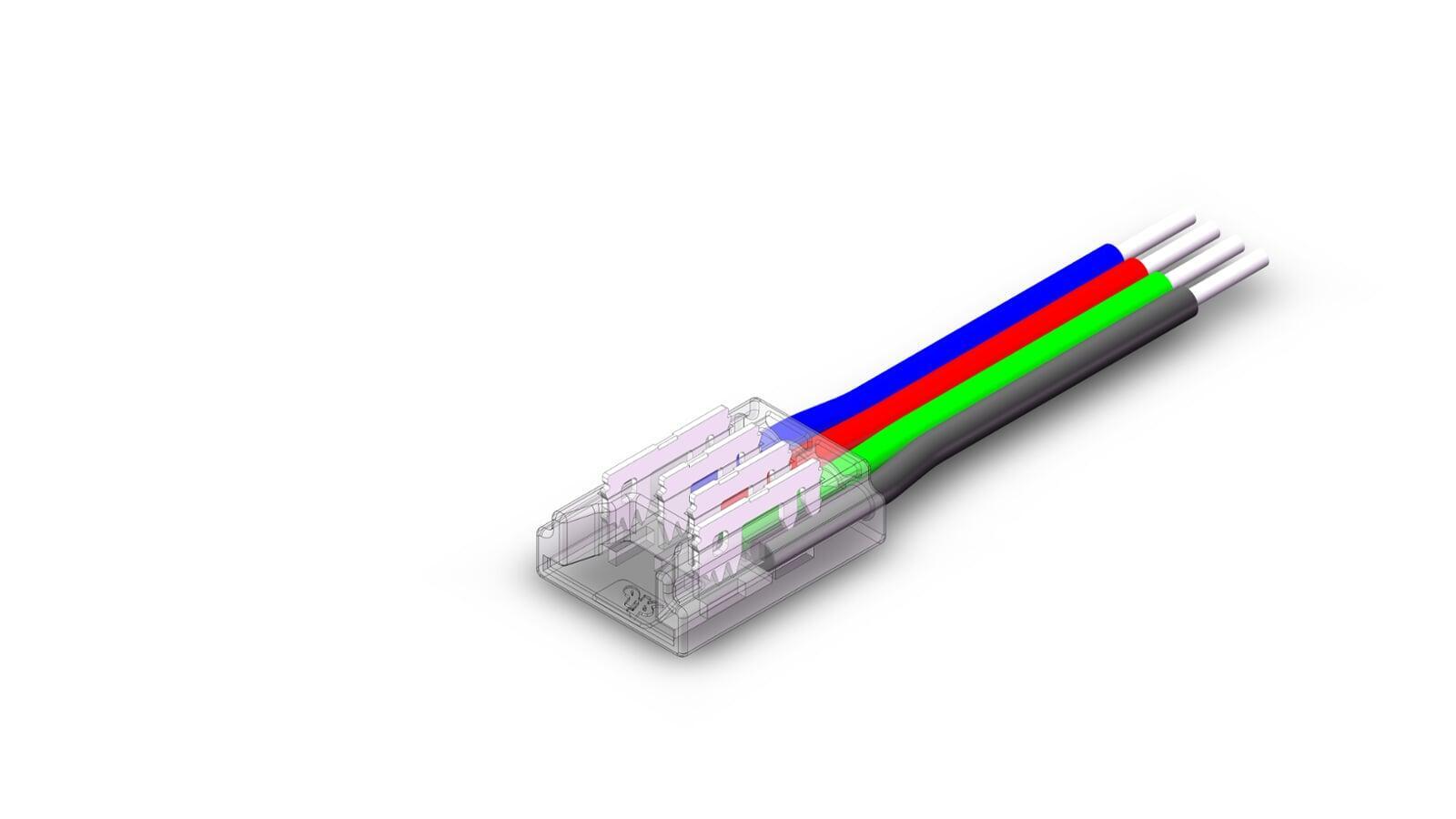

| 17# | HR-S-SMD-4PIN-8MM-B |   | Strip to wire, with 20AWG wire. | Used for 8mm 4P IP20 SMD strip light |

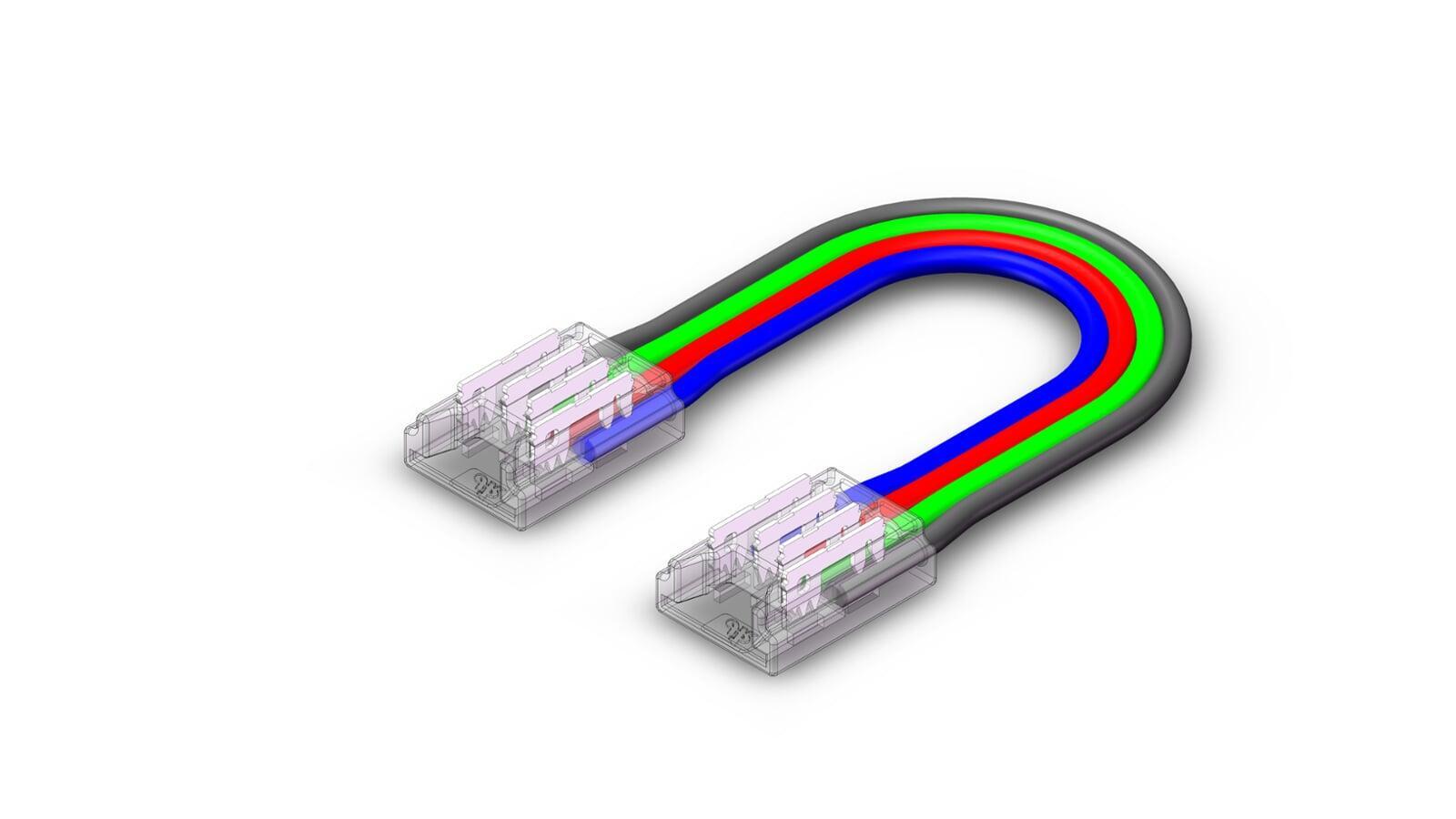

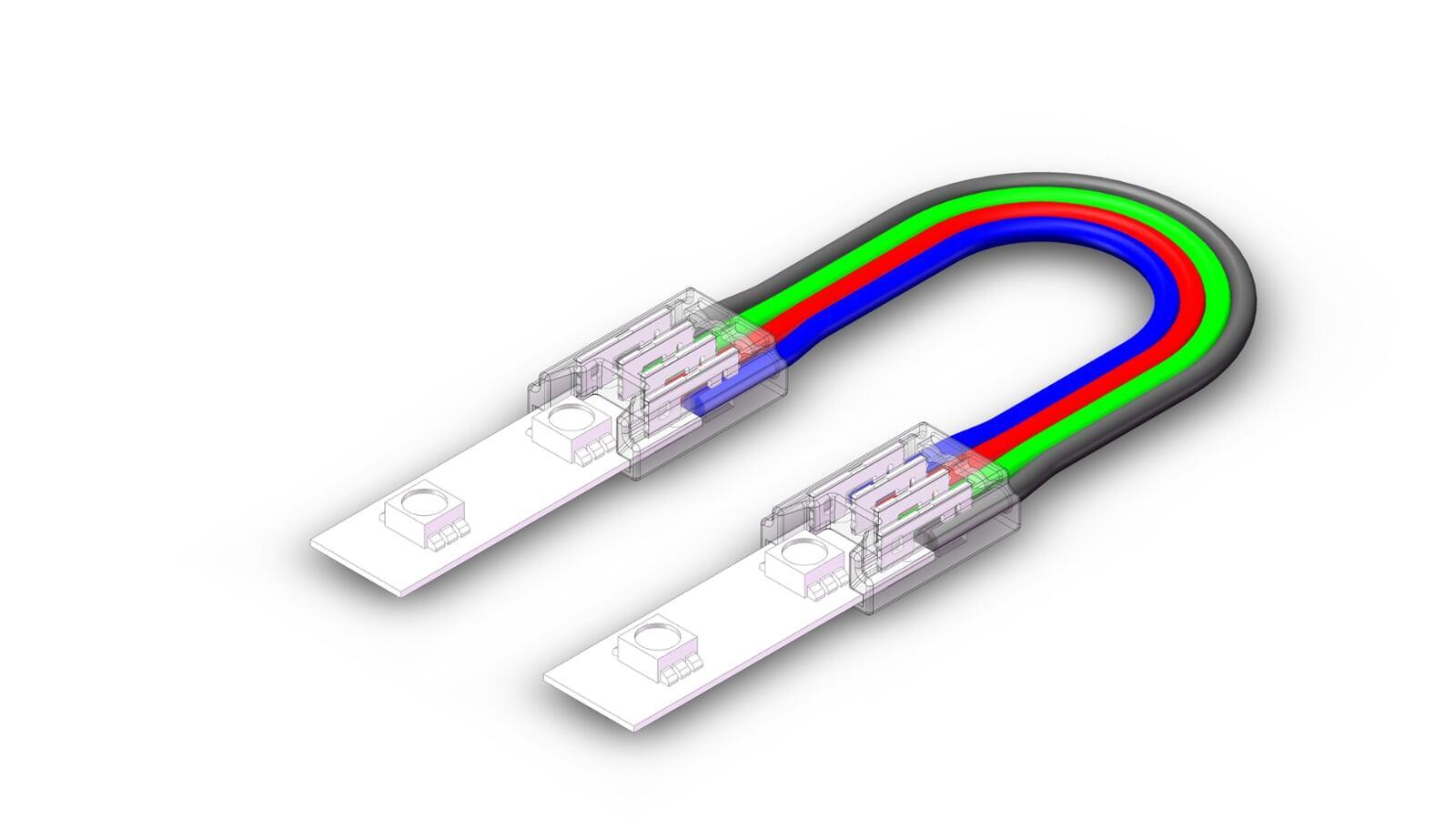

| 19# | HR-S-SMD-4PIN-8MM-C |   | Strip to Strip Bridge | Used for 8mm 4P IP20 SMD strip light |
Data Sheet
Used for 8mm 4P IP20 SMD strip light
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 18# HR-S-SMD-4PIN-8MM-A | Strip to Strip Joint | 8mm 4P SMD IP20 strip light | 5-48V/6A | 13.5x9.8x3.7mm | PC+Copper | / | Transparent |
| 17# HR-S-SMD-4PIN-8MM-B | Strip to Wire | 8mm 4P SMD IP20 strip light | 5-48V/4A | 13.5x9.8x4.2mm | PC+Copper | 150MM Length 22AWG/0.52mm² | Transparent |
| 19# HR-S-SMD-4PIN-8MM-C | Strip to Strip Bridge | 8mm 4P SMD IP20 strip light | 5-48V/4A | 13.5x9.8x4.2mm | PC+Copper | 150MM Length 22AWG/0.52mm² | Transparent |
Installation
