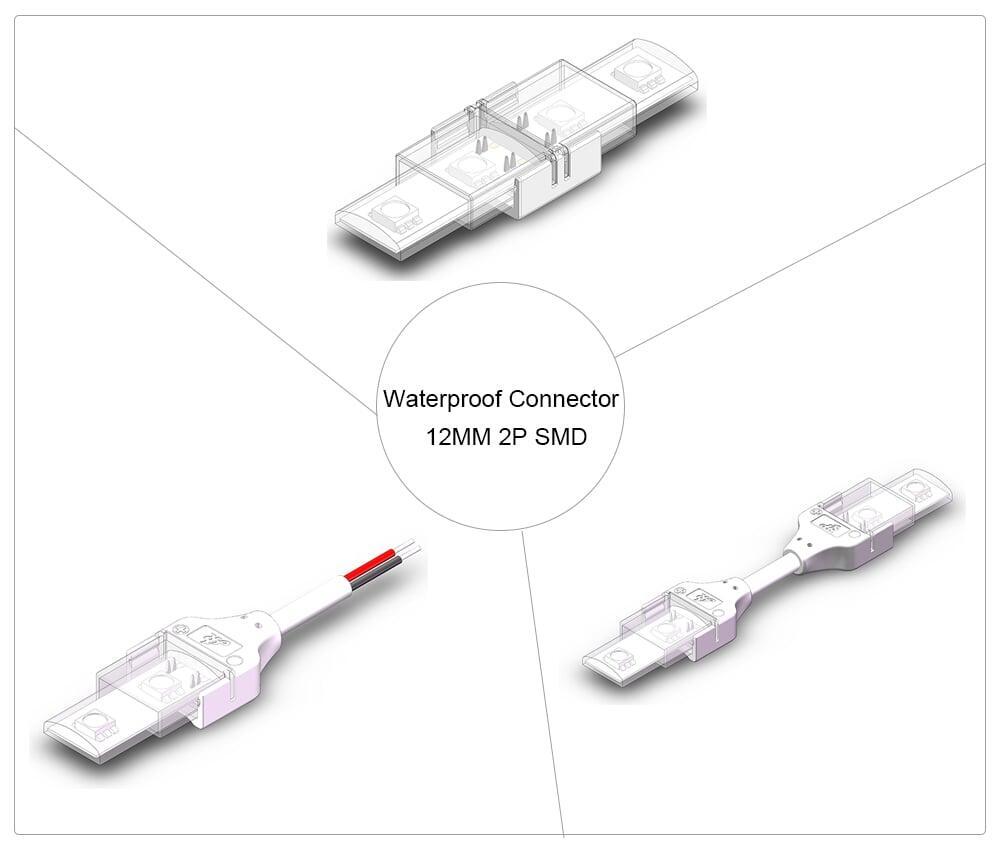

Waterproof-12mm PCB(14MM Tube) 2P SMD Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, End Cap
- Applicable Strip: Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

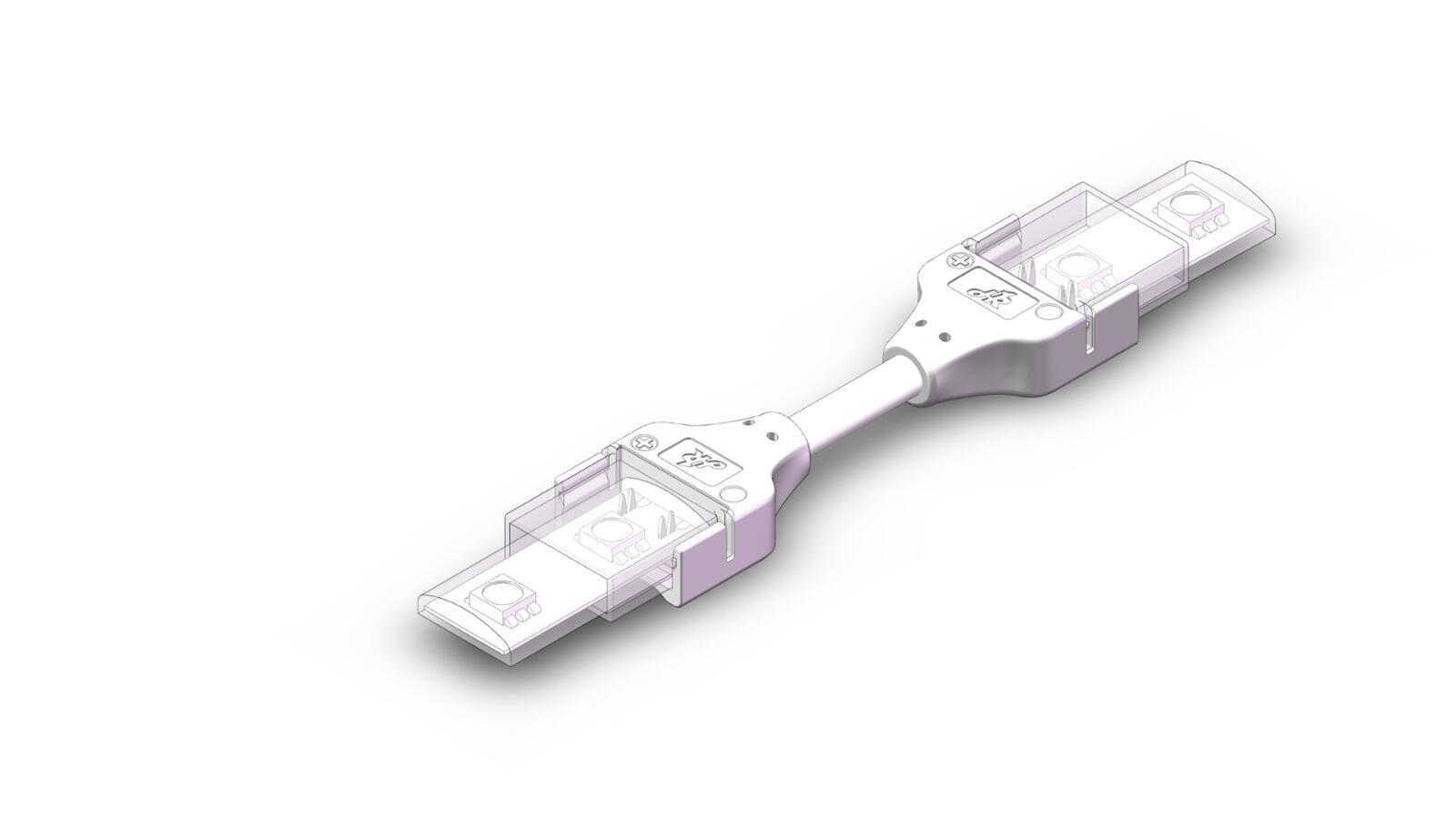

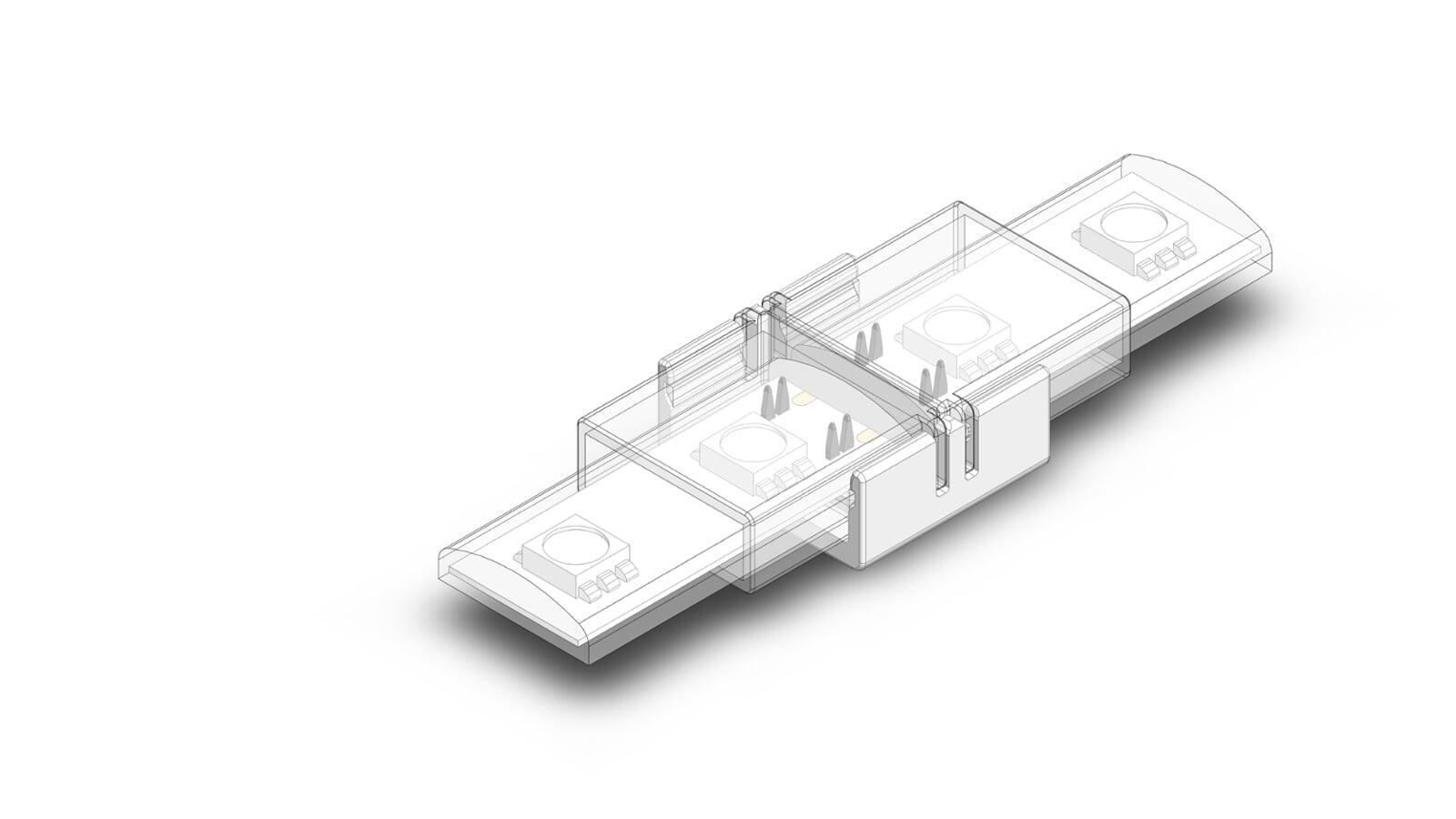

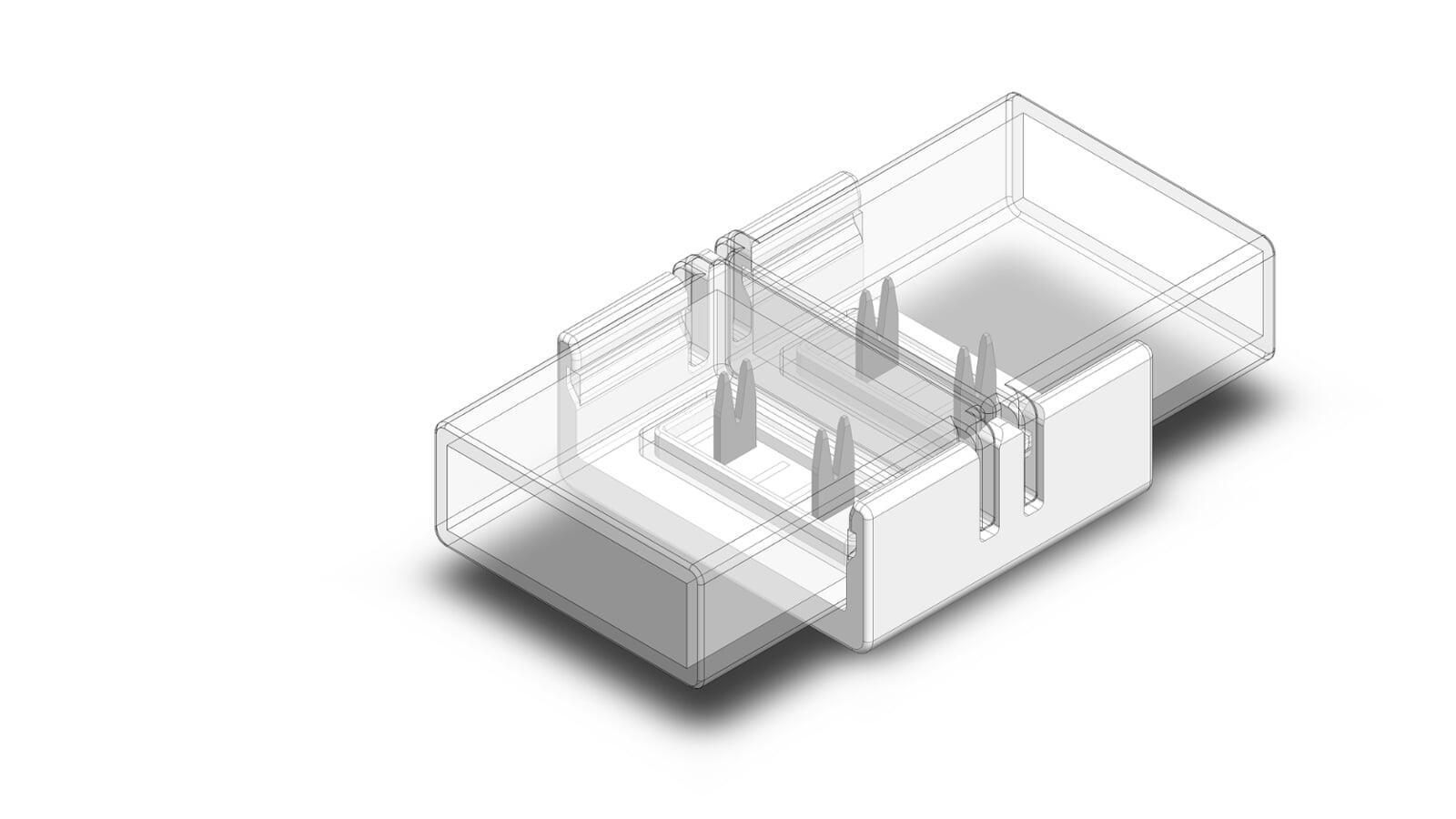

| 98# Squared | HR-IP-SMD-2PIN-12MM-A |   | Strip to strip Joint; | Used for 12mm PCB (14mm tube) 2P SMD waterproof strip light |

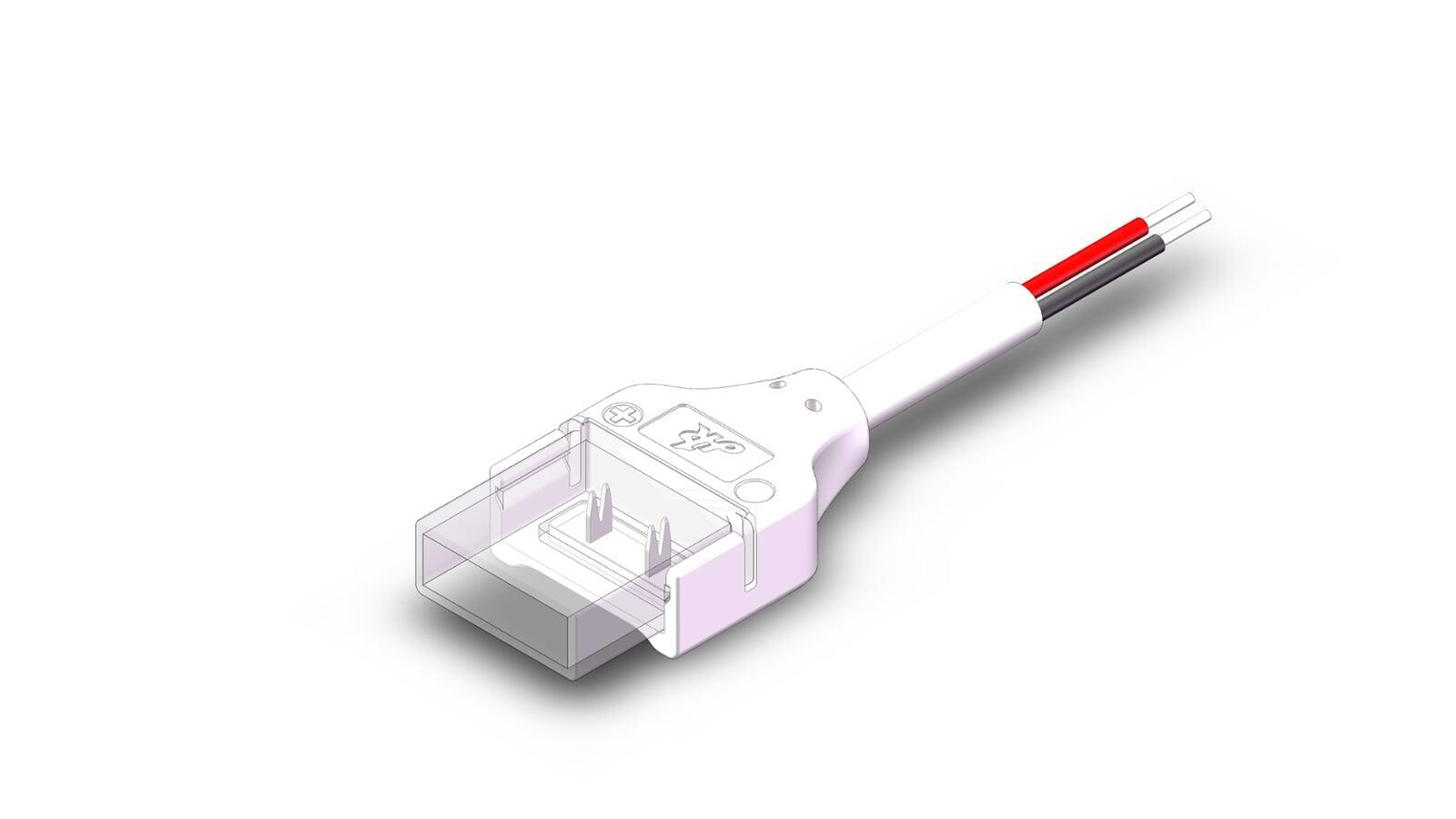

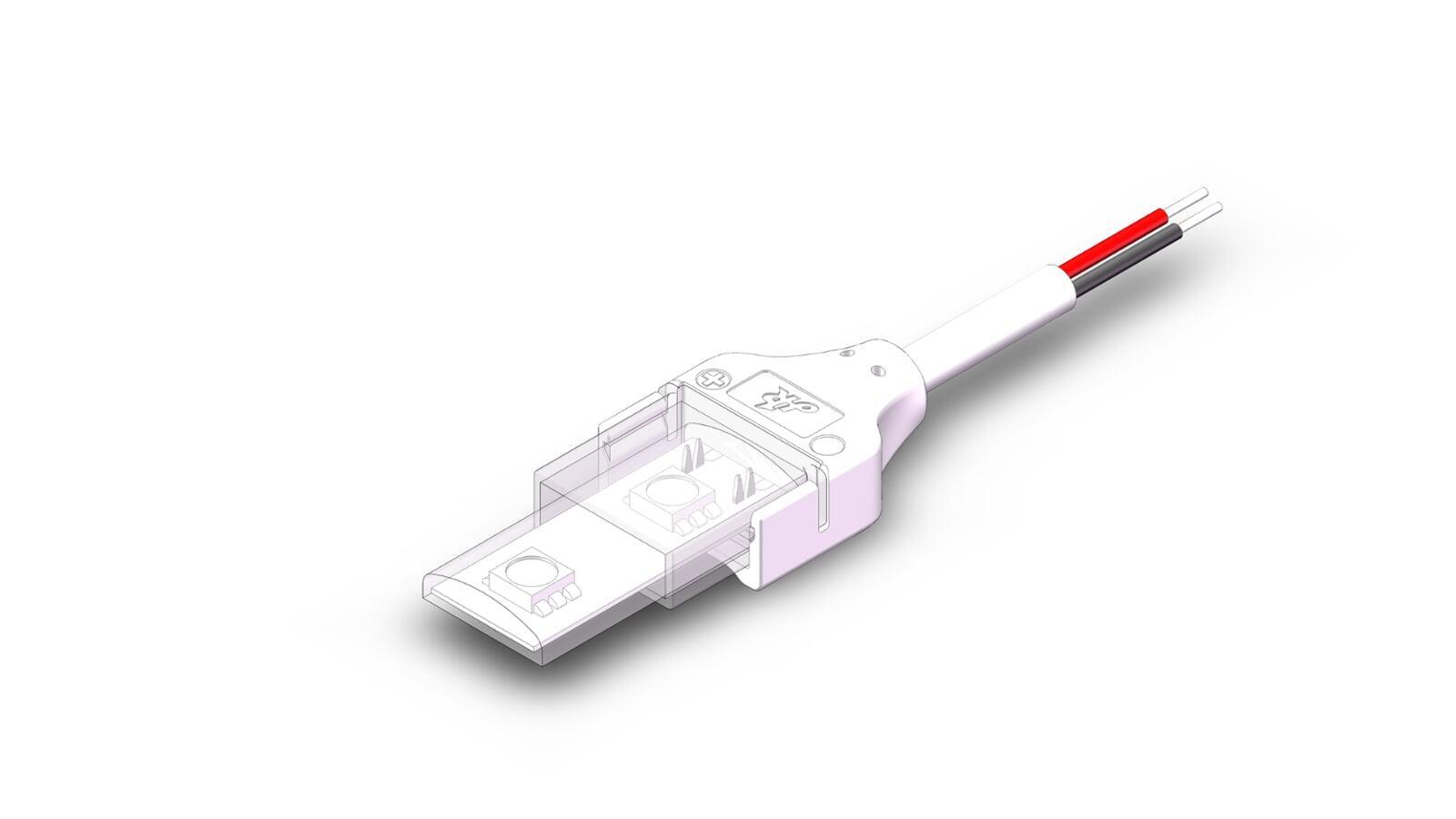

| 97# Squared | HR-IP-SMD-2PIN-12MM-B |   | Strip to wire, with 20AWG wire. | Used for 12mm PCB (14mm tube) 2P SMD waterproof strip light |

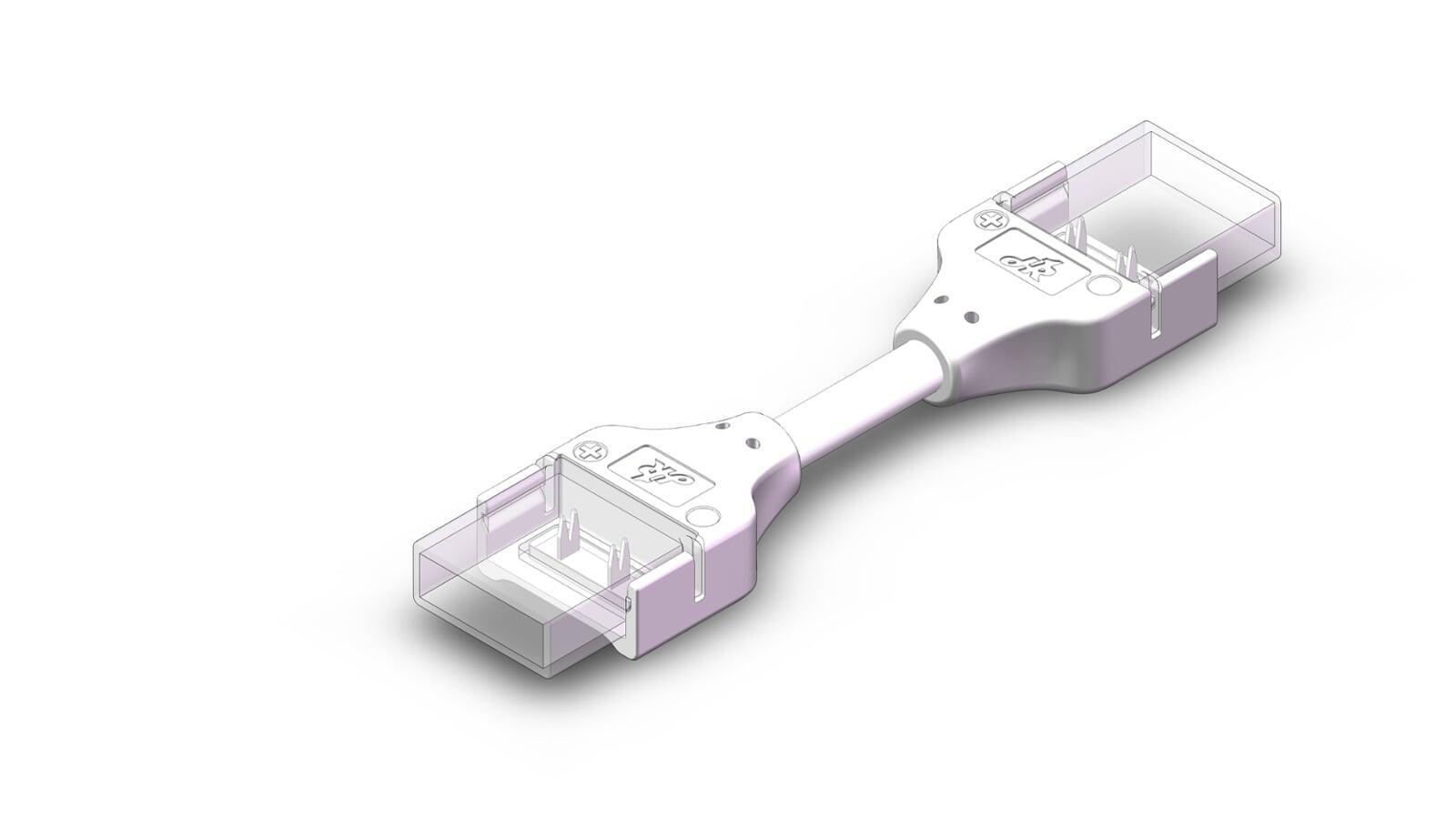

| 99# Squared | HR-IP-SMD-2PIN-12MM-C |   | Strip to Strip Bridge | Used for 12mm PCB (14mm tube) 2P SMD waterproof strip light |
Data Sheet
Used for Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 98# HR-IP-SMD-2PIN-12MM-A | Strip to Strip Joint | 12mm PCB; Squared encapsulated extruded deimension 14x4mm | 3-240V/6A | 35.5x19.2x8.5mm | Nylon, PC | / | White&Transparent |
| 97# HR-IP-SMD-2PIN-12MM-B | Strip to Wire | 12mm PCB; Squared encapsulated extruded deimension 14x4mm | 3-240V/6A | 34.5x19.2x8.5mm | Nylon, PC | 180MM Length 20AWG/0.52mm² | White&Transparent |
| 99# HR-IP-SMD-2PIN-12MM-C | Strip to Strip Bridge | 12mm PCB; Squared encapsulated extruded deimension 14x4mm | 3-240V/6A | 34.5x19.2x8.5mm | Nylon, PC | 170MM Length 20AWG/0.52mm² | White&Transparent |
