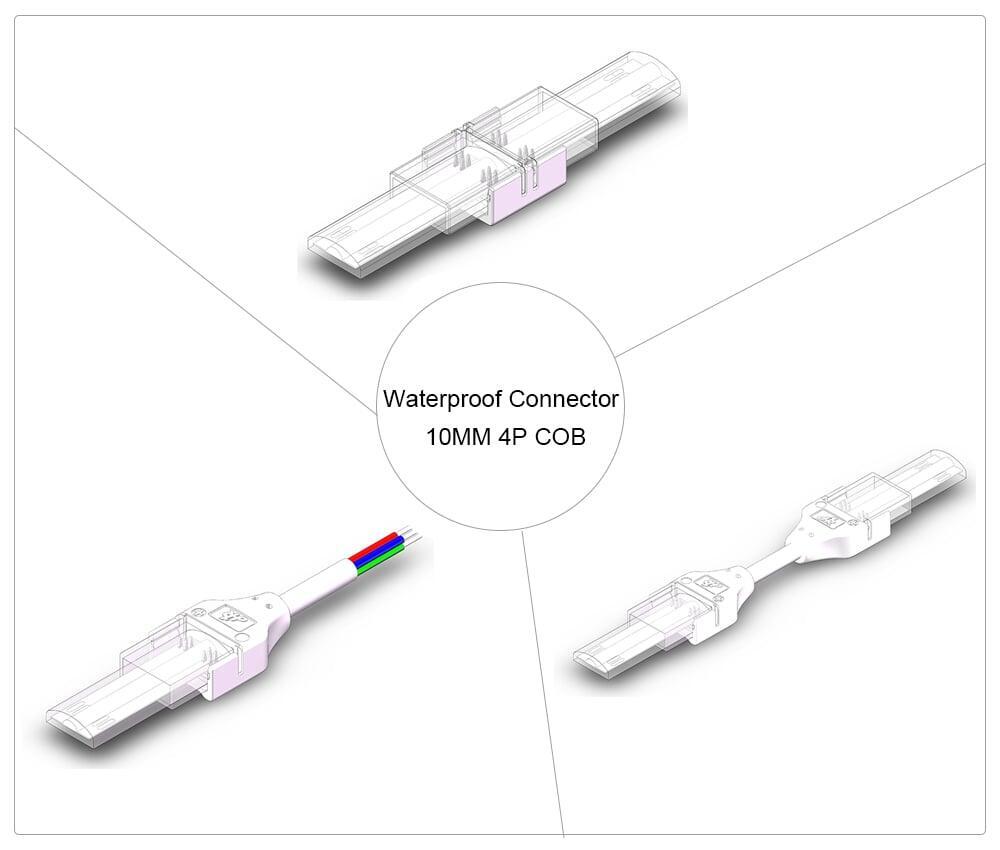

Waterproof-10mm PCB(12MM Tube) 4P COB Connector
- Brief Info
- Types: Strip to Strip Joint, strip to power, strip to strip bridge, End Cap
- Applicable Strip: Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
- Workable PCB Type: Flexible
- Workable Wire: 20 AWG/0.52 mm2
- Certificate: CE, RoHS
Option
| Item No | Model No | Picture | Types | Aplication |

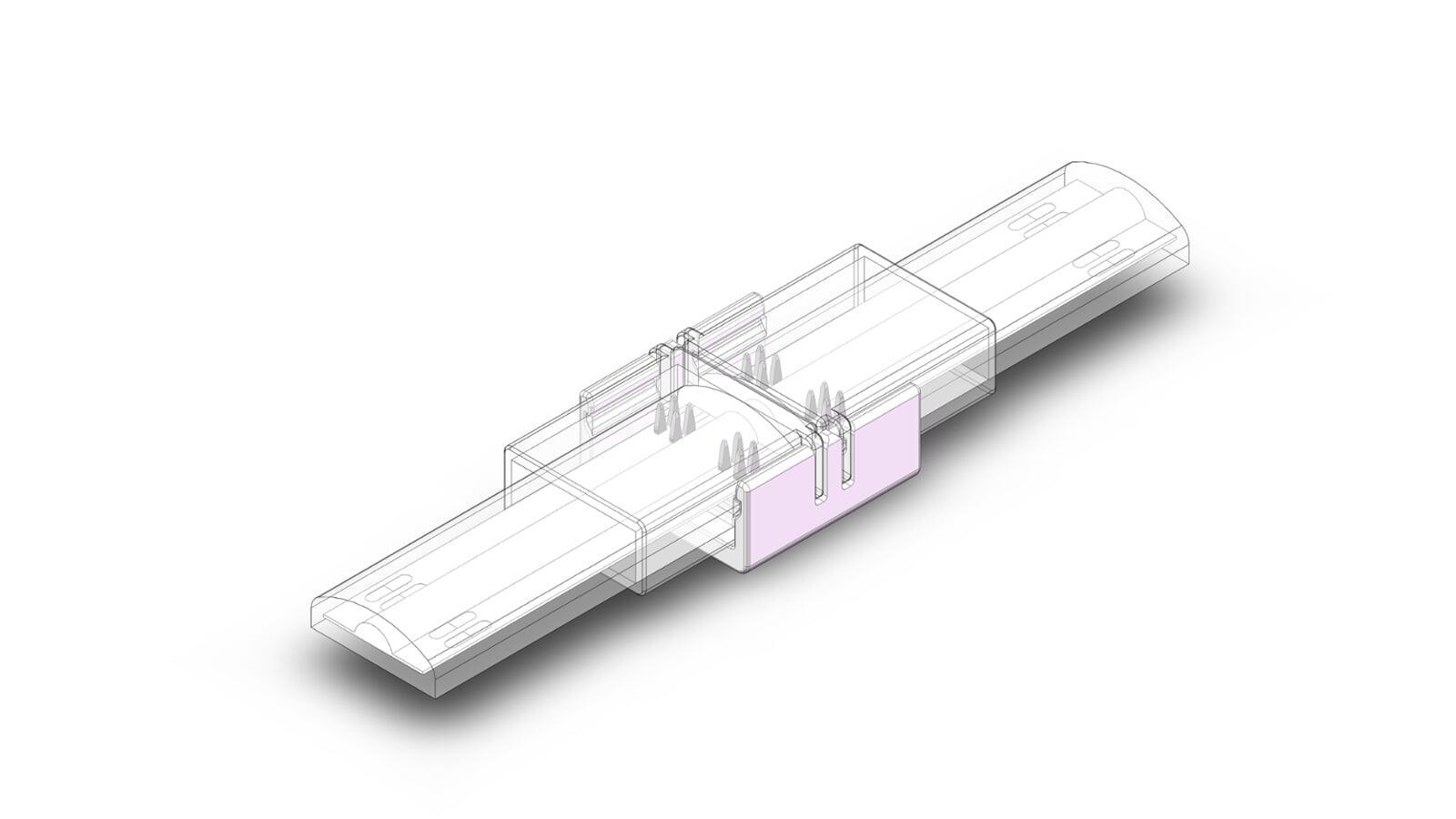

| 87# Squared | HR-IP-COB-4PIN-10MM-A |   | Strip to strip Joint; | Used for 10mm PCB (12mm tube) 3P/4P COB waterproof strip light |

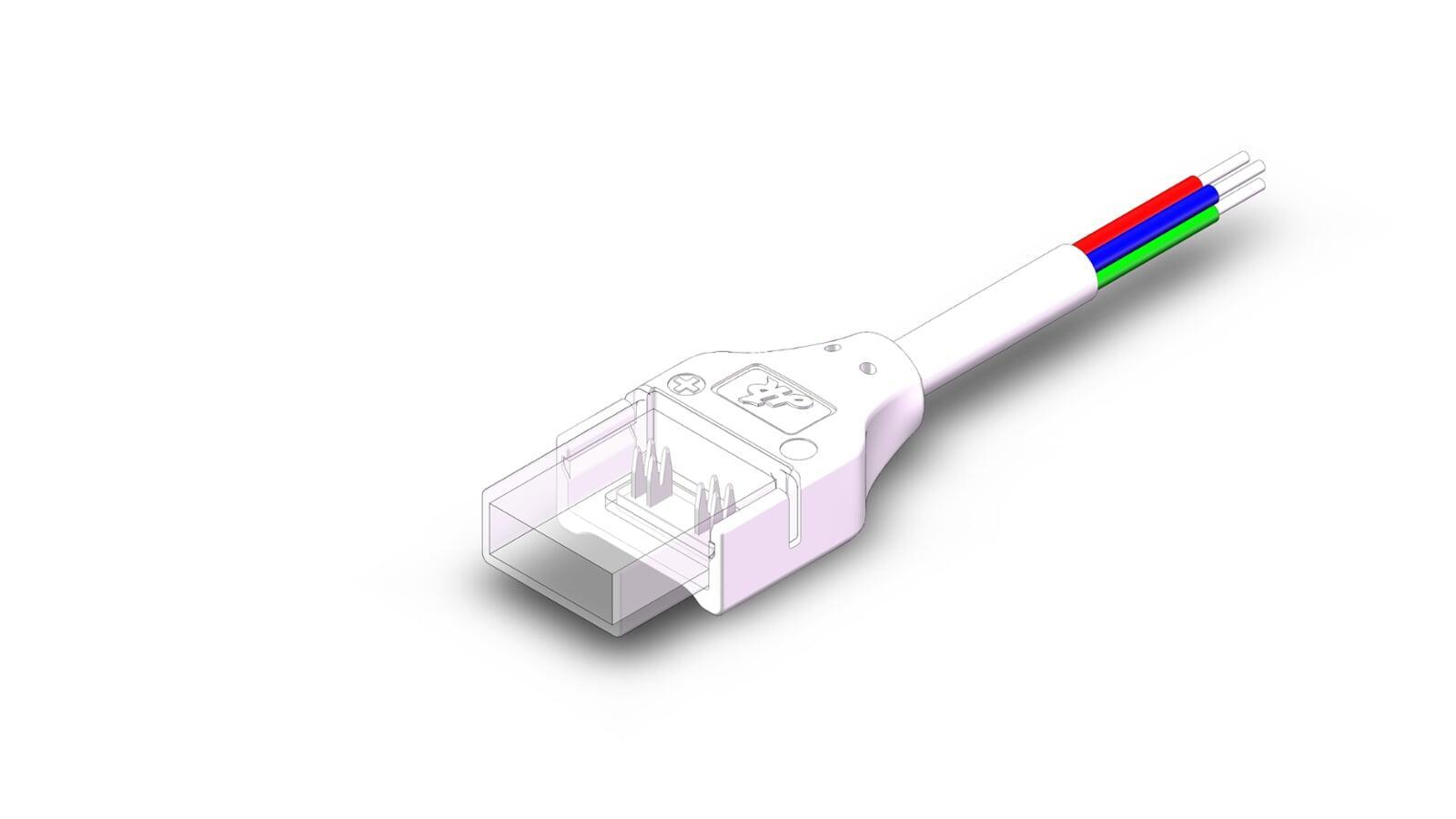

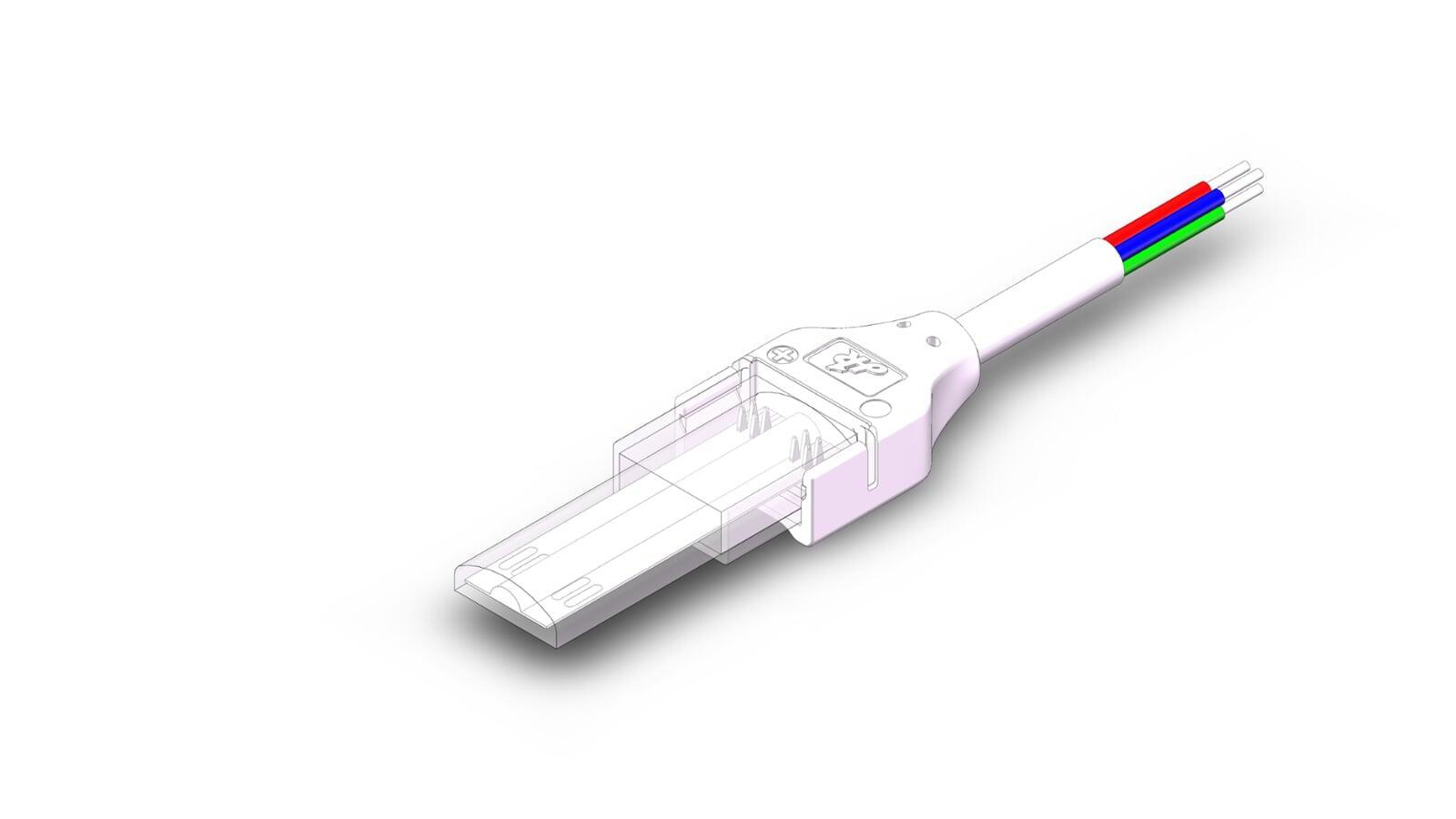

| 89# Squared | HR-IP-COB-4PIN-10MM-B |   | Strip to wire, with 20AWG wire. | Used for 10mm PCB (12mm tube) 4P COB waterproof strip light |

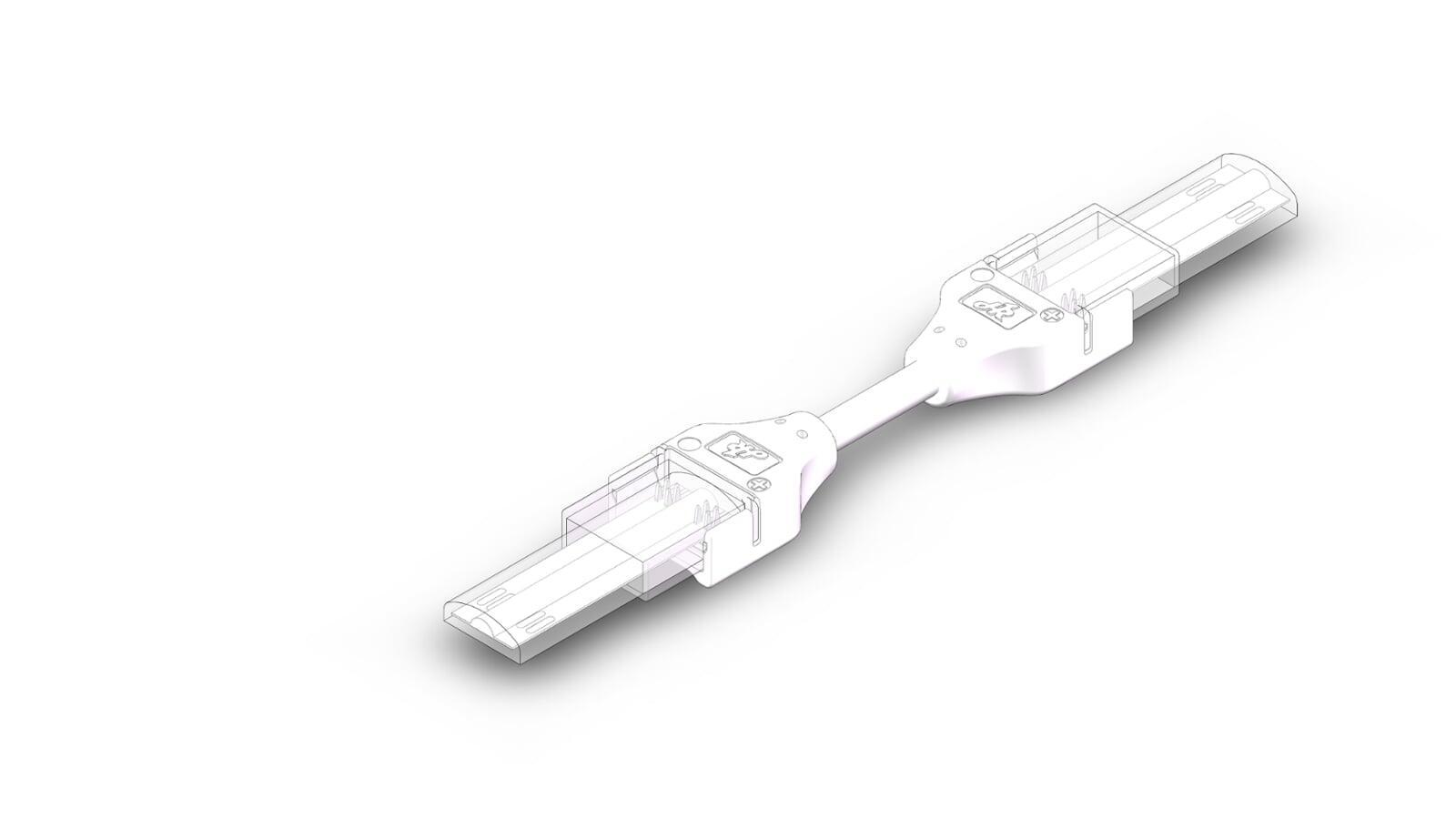

| 90# Squared | HR-IP-COB-4PIN-10MM-C |   | Strip to Strip Bridge | Used for 10mm PCB (12mm tube) 4P COB waterproof strip light |
Data Sheet
Used for Waterproof silicone extrusion sleeve / silicone solid extrusion Tube
| Model No. | Type | Compatible Led Strip | Voltage/Current | size | material | wire cable | Color |
| 87# HR-IP-COB-3PIN-10MM-A | Strip to Strip Joint | 10mm PCB; Squared encapsulated extruded deimension 12x4mm | 3-240V/6A | 35.5x17x8.5mm | Nylon, PC | / | White&Transparent |
| 89# HR-IP-COB-4PIN-10MM-B | Strip to Wire | 10mm PCB; Squared encapsulated extruded deimension 12x4mm | 3-240V/6A | 34.5x17x8.5mm | Nylon, PC | 180MM Length 20AWG/0.52mm² | White&Transparent |
| 90# HR-IP-COB-4PIN-10MM-C | Strip to Strip Bridge | 10mm PCB; Squared encapsulated extruded deimension 12x4mm | 3-240V/6A | 34.5x17x8.5mm | Nylon, PC | 170MM Length 20AWG/0.52mm² | White&Transparent |
Recommend Dimension for Squared and Curved Strip
Installation
